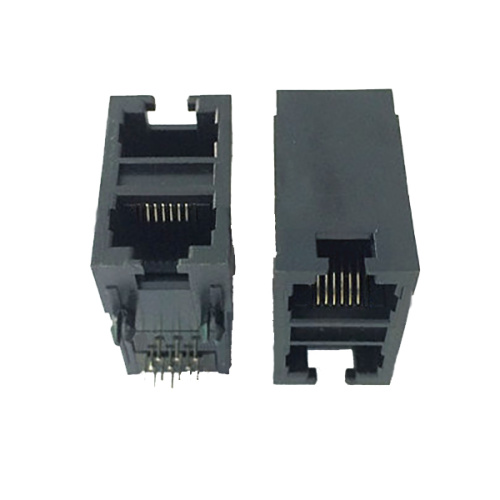

Full Plastic RJ11 JACK Side Entry

Full Plastic RJ11 JACK Side Entry

Specifications:
MATERMECHANICAL:
  1.HOUSING MATERIAL:Nylon+30% GF UL94V-0 Black.
  2.CONTACT MATERIAL:PHOSPHOR BRONZE ∅0.46mm
  3.PLATING:SELECTING GOLD PLATING OVER NICKEL
  4.Operating Life:750 CYCLES MIN
  5.PCB RETENTTON PRE-SOLDER:1 LB MIN
  6.PCB RETENTTON POST-SOLDER:10 LBS MIN
ELECTRICAL:
  1.VOLTAGE RATING:125V AC RMS
  2.CURRENT RATING:1.5AMP
  3.CONTACT RESISTANCE:50 MILLIOHMS MAX
  4.INSULATION RESISTANCE:1000 MEGOHMS MIN @500V DC
  5.DIELECTRIC WITHSTANDING VOLTAGE:1000V AC RMS 60Hz. 1MIN
REVIRONMENTAL
  1.STORAGE TEMPERATURE:-40°C TO + 85°C
  2.OPERATION TEMPERATURE:-40°C  TO +85°C
  3.WAVE SOLDERING TEMPERATURE:255~265°C(5-10 SECONDS)
MATES WITH MODULAR PLUG CONFORMAING TO FCC PART68,SUBPART F.
