Product Description

Manufacturer :ANTENK ELECTRONICS., CO. LTD.

High quality, competitive price, fast delivery, quick reply. UL, Rohs, Reach passed.

Enterprise slogan: a group of people, one heart, work together, will win
Corporate Mission: Connecting the World and Connecting the Future
Corporate Vision: Become the First Brand of Famous Connectors
Values: Diligence, Gratitude and Honesty

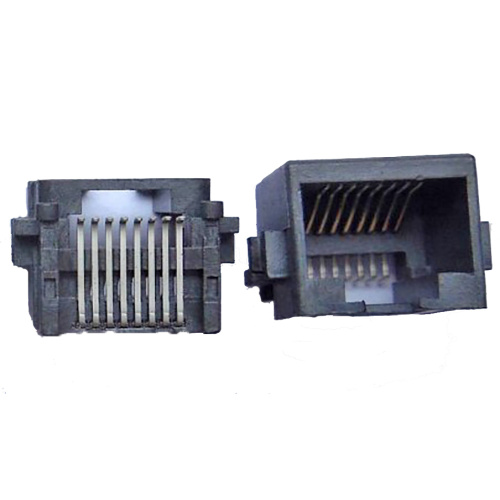

Product name：ATRJ5833-8P8C-X-A RJ45 8P8C Sink in 8.6mm type,No Led,Black

ELECTRICAL:
1.VOLTAGE RATING:125V AC RMS
2.CURRENT RAING:1.5AMP
3.CONTACT RESISTANCE:30 MILLIOHMS MAX
4.INSULATION RESISTANCE:500 MEGOHMS
MIN @500V DC
5.DLELECTRIC STRSTSTANCE: 1000V AC RMS
50HZ or 60Hz 1MIN
MECHANICAL:
1.HOUSING &INSERT MATERIAL:PA66 UL94V-0
2.CONTACT MATERIAL:DIAMETER 0.45MM
PHOSPHOR BRONZE GOLD PLATING OVER NICKEL
3.SHIELD:0.20~0.25MM THICKNESS BRASS
WITH TIN PLATED
4.MATING/UNMATING FORCE :2.2KG.F MAX
5.RETENTION STRENGTH:7.7KG.F MIN
BETWEET JACK AND PLUG
6.OPERATING LIFE:600 CYCLES MIN
ENVIRONMENAL:
1.STORAGE :-10℃~+40℃ REATIVE HUMIDITY<70%
2.OPERATION:-40℃~+70℃
