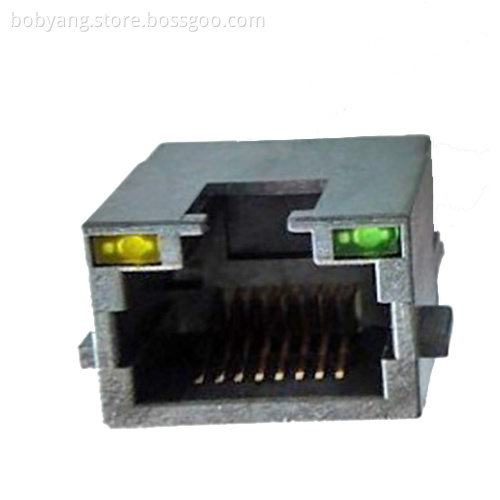

RJ45 8P8C Sink In EMI Type

RJ45 8P8C Sink In EMI Type ATRJ5835A-8P8C-X-A-X Specifications

1.HOUSING MATERIAL:GLASS FILLED POLYESTER UL94V-0
2.CONTACT MATERIAL:COPPER ALLOY 0.35mm MIN THICKNESS
3.PLATING:1,3,5,15,30u"GOLD PLATED ON CONTACT
AREA 100u" MIN MATIE TIN PLATED ON SOLDERING
AREA 50u"MIN.NICKEL PLATED OVERALL
4.SHELL:COPPER ALLOY 0.25MM THICKNESS
5.L=GREEN R=YELLOW
ELECTRICAL:
1.VOLTAGE RATING:125V AC RMS
2.CURRENT RAING:1.5AMP
3.CONTACT RESISTANCE:30 MILLIOHMS MAX
4.INSULATION RESISTANCE:500 MEGOHMS
     MIN @500V DC
5.DIELECTRIC WHTHSTANDING RESISTANCE: 1000V AC RMS
     50HZ or 60Hz 1MIN
MECHANICAL:
1.DURRABILITY:750 CYCLES MIN
2.PCB RETENTION PER-SOLDER: 1LB MIN
ENVIRONMENAL:
1.STORAGE :-40℃~+85℃
2.OPERATION:0℃~+70℃

RJ45 8P8C Sink In EMI Type Feature:

•   8P8C 1 x 1 Port PCB RJ45 Jack Connector, Shielded
•   Model Number :  ATRJ5835A-8P8C-X-A-X
•   1 ports RJ45 Female Connector, Shielded, Black or Gray Housing
•   With LED indicator
•   Ideal for LAN applications, like adapter, routers and switch hub, Shielded and non-shielded version are available, with a variety of ports for options
