8P8C RJ45 8P8C DIP Sink in Type

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CFR, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: ShenZhen, ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CFR,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	ShenZhen,ShenZhen

Product Description

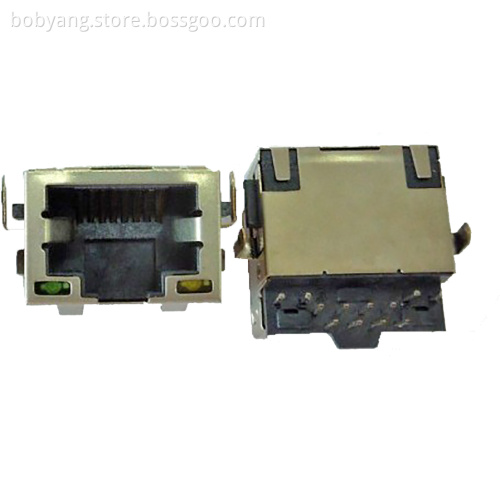

RJ45 8P8C Sink in Type for PCB Mount Ethernet Network ATRJ5834B-8P8C-X-A-X Specifications

1.HOUSING MATERIAL:GLASS FILLED POLYESTER UL94V-0
2.CONTACT MATERIAL:COPPER ALLOY 0.35mm THICKNESS
3.PLATING:1,3,5,15,30u"GOLD PLATED ON CONTACT
AREA 100u" MIN MATIE TIN PLATED ON SOLDERING
AREA 50u"MIN.NICKEL PLATED OVERALL
4.L=GREEN R=YELLOW
ELECTRICAL:
1.VOLTAGE RATING:125V AC RMS
2.CURRENT RAING:1.5AMP
3.CONTACT RESISTANCE:30 MILLIOHMS MAX
4.INSULATION RESISTANCE:500 MEGOHMS
MIN @500V DC
5.DIELECTRIC WHTHSTANDING STRSTSTANCE: 1000V AC RMS
50HZ or 60Hz 1MIN
MECHANICAL:
1.DURRABILITY:750 CYCLES MIN
2.PCB RETENTION PER-SOLDER: 1LB MIN
ENVIRONMENAL:
1.STORAGE :-10℃~+85℃
2.OPERATION:0℃~+70℃

RJ45 8P8C Sink in Type ATRJ5834B-8P8C-X-A-X Dimensions:

ATRJ5834B-8P8C-X-A-X
