Modular Jack side entry Half shield with panel

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CFR,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	ShenZhen

Product Description

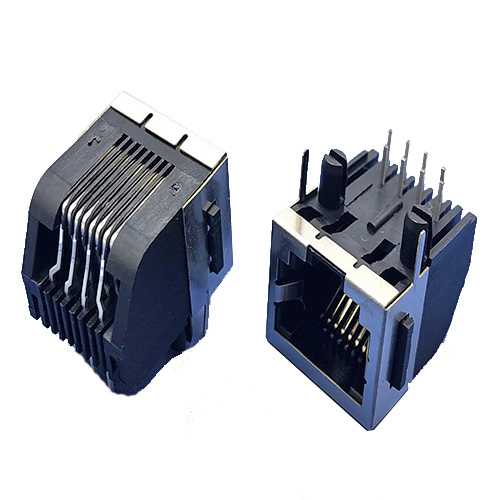

Modular Jack side entry Half shield with panel

Specifications:

MATERIAL:

HOUSING MATERIAL: glass filled polyester UL-94V-0
CONTACT MATERIAL: phosphor bronze T=0.35mm
PLATING: gold plating over nickel
ELECTRICAL:
VOLTAGE RATING:125 VAC RMS
CURRENT RATING:1.5 AMP
CONTACT RESISTANCE :30 milliohms max
INSULATION RESISTANCE :500 megohms min @500V DC
DIELECTRIC WITHSTANDING RESISTANCE: 1000V AC RMS 50Hz 1MIN
MECHANICAL:
DURRABILITY :750 cycles min
PCB RETENTION PRE-SOLDER:1LB MIN
ENVIRONMENTAL:
STORAGE:-40℃~+85℃
OPERATION:-40℃~+70℃
