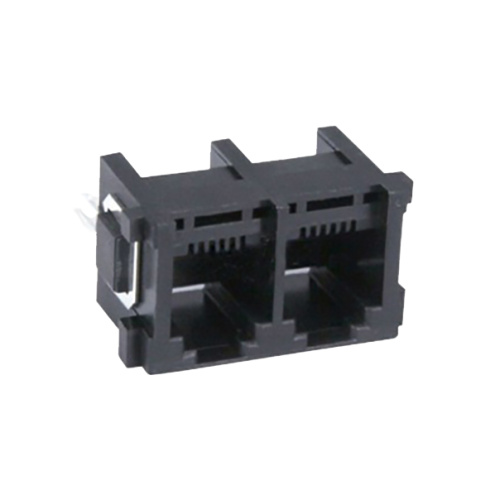

RJ11 Top entry 6P4C Full plastic with legs

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000k/month
Supply Ability:	2000k/month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO 9001-2015
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

ATRJ5224-6P4C-X-A-B RJ11 Top entry 6P4C 1X2P,Full plastic with metal legs

NOTES:
MATERIAL:
1.HOUSING MATERIAL:GLASS FILLED POYESTER UL94V-0.
2.CONTACT MATERIAL:PHOSPHOR BRONZE t=0.3mm
3.PLATING:SELECTING GOLD PLATING 1μ~50μ"OVER
NICKEL IN CONTACT AREA.150μ" TIN
PLATIN.OVER NICKEL IN SOLDER AREA
4.SHIELD:0.2mmTHICKNESS COPPER WITH NICKEL PLATEI
ELECTRICAL
1.VOLTAGE RATING:125VAC RMS
2.CURRENT RATING:1.5AMP
3.CONTACT RESISTANCE:30MILLIOHMS MAX
4.INSULATION RESISTANCE 500MEGOHMS MIN @500V DC
5.DIELECTRIC WITHSTANDING RESISTANCE
:1000V AC RMS 50Hz. 1MIN
MECHANICAL
1.DURRABILITY:750 CYCLES MIN
2.PCB RETENTTON PRB-SOLDER:1 LB MIN
REVIRONMENTAL
1.STORAGE:-40°C TO 85°C
2.OPERATION:0°C TO 70°C

Send your message to this supplier

* From:
* To:

Mr. Bob Yang
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

RJ11 6P4C 1X2P with Metal Legs , RJ11 Top Entry 6P4C 1X2P , Top Entry 6P4C with Metal Legs
