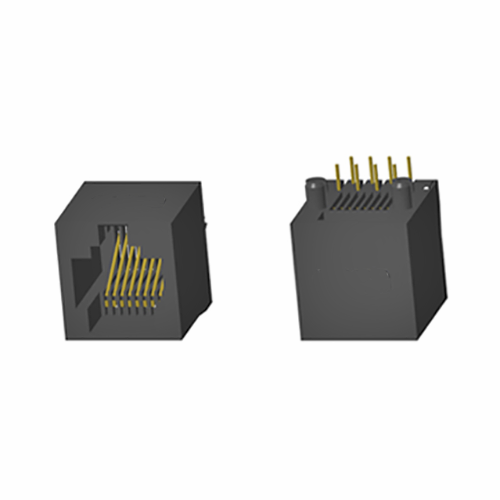

RJ45 Jack Top entry 8P8C Full Plastic H=14.0mm

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO 9001-2015
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

RJ45 Jack Top entry 8P8C Full Plastic H=14.0mm

ELECTRICAL:

1.COLTAGE RATING : 125 VAC RMS
2.CURRENT RATING:1.5 AMP
3.CONTACT RESISTANCE: 30 MILLIOHMS MAX
4.INSULATION RESISTANCE:1000 MEGOHMS MIN @500 V DC
5.DIELECTRIC STRENGTH:1000 VAC RMS 60HZ,1MIN
MECHANICAL:
1.HOUSING MATERIAL: PA66+30%G.F UL94V-0
2.CONTACT MATERIAL:PHOSPHOR BRONZE T=0.35mm
3.SHIELD MATERIAL:0.25mm THICKNESS BRASS;PLATING GOLD PALTING
4.PLATING :1.CONTACT AREA- SELECTIVE GOLD PLATING.
2.GOLD PLATING OVER NICKEL
5.OPERATING LIFE :750 CYCLES MIN
6.PCB RETENTION POST -SOLDER:10 LBS MIN
