Modular Jack 8P8C shielded W/O LED

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO 9001-2015
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

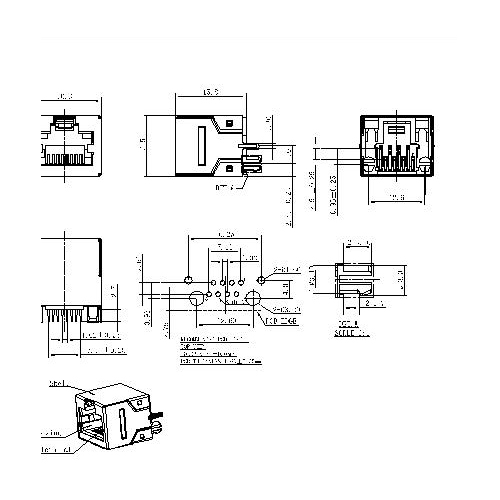

Modular Jack 8P8C 1x1P shielded W/O LED Vertical Through Hole Type

Specifications:

1.Electronical Characteristics:
1.1 Voltage Rating:1000 VAC 1 Minute
1.2 Current Rating:1.5A
1.3 Contact Resistance:50 Milliohms Maximum
1.4 Insulation Resistance:500 Megohms Min
1.5 Dielectric Strength:1000 VAC RMS 60HZ.1MIN.
2.Mechanical Characteristics:
2.1 Operating Life:750 Cycles Minimum
2.2 PCB Retention Pre-solder:1 LBS Minimum
2.3 PCB Retention Post-solder:10 LBS Minimum
3.Material & Plating
3.1 Housing Material:High Temp.Plastic UL94V-0
3.2 Contact Material:Selective Gold Plating
3.3 Teminal:0.35mm Thickness Copper Alloy Plated With
Gold And Tin in Solder Area.
3.4 Shell:Copper Alloy,Nickel Plating.
4.Environmental:
4.1 Storage:-40°To +85°
4.2 Operation:-40°To +85°
4.3 Wave Soldering Temperature:230°To 250° (3-5 Seconds)
ATRJ5228-8P8C-X-A-A-A
