Product Description

Manufacturer :ANTENK ELECTRONICS., CO. LTD.

High quality, competitive price, fast delivery, quick reply. UL, Rohs, Reach passed.

Enterprise slogan: a group of people, one heart, work together, will win
Corporate Mission: Connecting the World and Connecting the Future
Corporate Vision: Become the First Brand of Famous Connectors
Values: Diligence, Gratitude and Honesty

Product name:AW4201VT-2xNP-XX

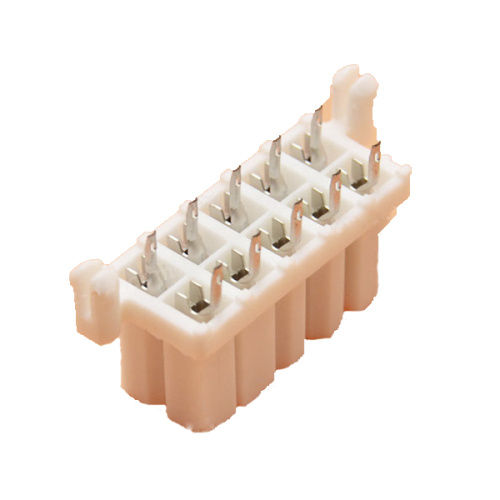

MOLEX 4.20mm 180°Male With Post Wafer Connector Series

SPECIFICATIONS
·Voltage rating：600V AC.DC
·Current rating：7A,AC,DC
·Withstanding Voltage：1500V AC/minute
·Insulation resistance:1000MΩ min
·Temperature range：-25℃-+85℃
·Contact resistance：20mΩ max

WAFER
·Part NO：AW4201VT-2xNP-XXXX
·Poles:02-24P
·Housing Material：PA66 UL94V-2 or UL94V-0
·Pin Material:Phosphor Bronze
·Contact Area：Matts Tin or Gold Plating Thckness Min
·Soldering Area:Matts Tin 100U" Plating Thckness Min
·The Dimension Marked“ ”Must Be Recorded
