MX3.0mm 180° Wafer Connector Series AW3045V-2xNP-X

1.product introduction

The appearance of high-density Wire To Board Connectors makes it possible to realize more signal channels in a limited space;The blind plug connector provides a more convenient way to plug and unplug, reducing the risk of misoperation;In addition, the improvement of waterproof, seismic, corrosion resistance and other properties also makes the Wire To Board Connectors can be applied in special environments.As an important technology, Wire To Board Connectors provide a reliable basis for efficient data transmission of modern electronic devices.It has a wide range of applications, not only in the field of communication plays an important role, but also in industrial, medical and other fields have a wide range of applications.As technology continues to innovate, Wire To Board Connectors will continue to evolve and adapt to new needs, bringing people a more efficient and reliable data transmission experience.

2.product parameter

 SPECIFICATIONS
·Voltage rating：250V AC.DC
·Current rating：5A,AC,DC
·Withstanding Voltage：1500V AC/minute
·Insulation resistance:1000MΩ min
·Temperature range：-25℃-+85℃
·Contact resistance：20mΩ max

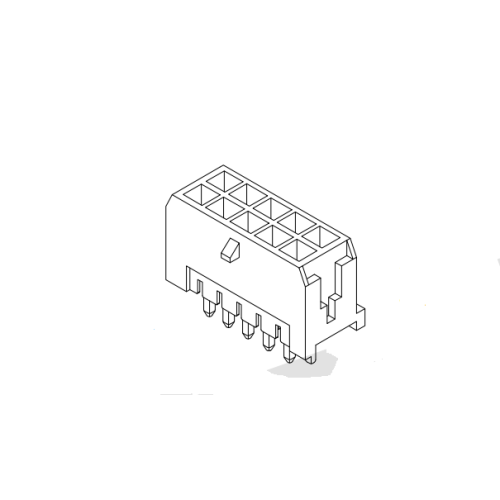

3.product picture
