2.50mm pitch 90° Wafer With Boss Connector Series

1.product introduction

The appearance of high-density Wire To Board Connectors makes it possible to realize more signal channels in a limited space;The blind plug connector provides a more convenient way to plug and unplug, reducing the risk of misoperation;In addition, the improvement of waterproof, seismic, corrosion resistance and other properties also makes the Wire To Board Connectors can be applied in special environments.As an important technology, Wire To Board Connectors provide a reliable basis for efficient data transmission of modern electronic devices.It has a wide range of applications, not only in the field of communication plays an important role, but also in industrial, medical and other fields have a wide range of applications.As technology continues to innovate, Wire To Board Connectors will continue to evolve and adapt to new needs, bringing people a more efficient and reliable data transmission experience.

2.product parameter

SPECIFICATIONS 规格
·Voltage rating额定电压：250V AC交流/DC直流
·Current rating额定电流：3A
·Withstanding Voltage耐电压：1000V AC交流/minute 1分钟
·Insulation resistance绝缘电阻:1000MΩ min最小
·Temperature range工作温度：-40°C-+105°C

WAFER针座
·Part NO料号.：AW2508R-F-xP
·Material材质：
Pin四方针：Brass黄铜/Tin over Nickel镍底镀锡
Insulator胶芯：Nylon 66，UL94V-0
·Mates with配套胶壳：AH2508 series Housing
·Color默认颜色: Ivory 象牙白

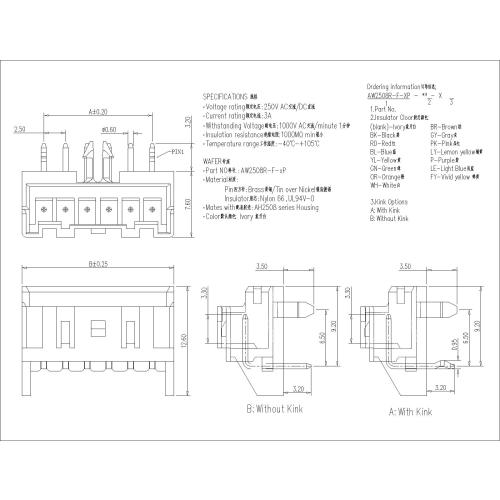

3.product picture
