AW2016R-2xNP 2.00mm Pitch 90° Wafer Connector Series

1.product introduction

A Wire To Board Connectors is an electrical connector that consists of two parts, a plug and a socket.The plug usually has a metal pin or contact point, and the socket has a corresponding jack or contact point, and the circuit is connected and disconnected by inserting and pulling.It is very important for users to correctly select Wire To Board Connectors products.In recent years, Wire To Board Connectors are moving towards smaller trends.The common wire To board connector pitch for handheld consumer electronic devices is 0.40mm;The stack height of 1.00mm is a small connector.Recently, the Wire To Board Connectors used by major original equipment manufacturers are as low as 0.70 mm, and sometimes even lower.

2.product parameter

 Specifications :
Voltage rating: 250V AC / DC
Current rating: 3A  AC / DC
Withstanding voltage: 800V AC/minute
Temperature range: -25°C~+85°C
Insulation resistance:≥1000MΩ
Contact resistance: ≤10mΩ
After environmental testing：≤20mΩ

Wafer:
Part No.:AW2016R-2xNP
Material:
              Housing:PA66,UL94V-0
              Contact:Brass
Finish:Matte Tin
Mate With:AH2016

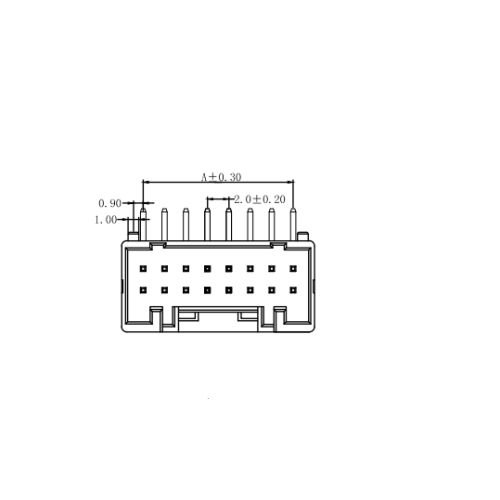

3.product picture
