2.0mm Pitch 90° SMT Wafer Connector Without Post

1.product introduction

Wire To Board Connectors is a product that connects different circuit boards together, its transmission capacity is better, and it is a good connector product in all connector product types at present, mainly used in financial manufacturing, medical equipment, communication networks, elevators, industrial automation, power systems, home appliances, office equipment, military manufacturing and other industries.The Wire To Board Connectors between the circuit board is different, and its type is different, and each type has its own characteristics.And Wire To Board Connectors will continue to evolve and adapt to new needs, bringing people a more efficient and reliable data transmission experience.

2.product parameter

Specifications:
Current rating: 3A AC/DC (AWG #22)
Voltage rating: 250V AC/DC
Temperature range: -25°C to +85°C
(including temperature rise in applying electrical current)
Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
Insulation resistance: Initial/ 1,000 MΩ min.
Withstanding voltage: 800V AC/minute
Applicable wire: Conductor size/ AWG #28 to #22
Insulation O.D./ 0.76 to 1.5 mm
Applicable PC board thickness: 1.6 mm

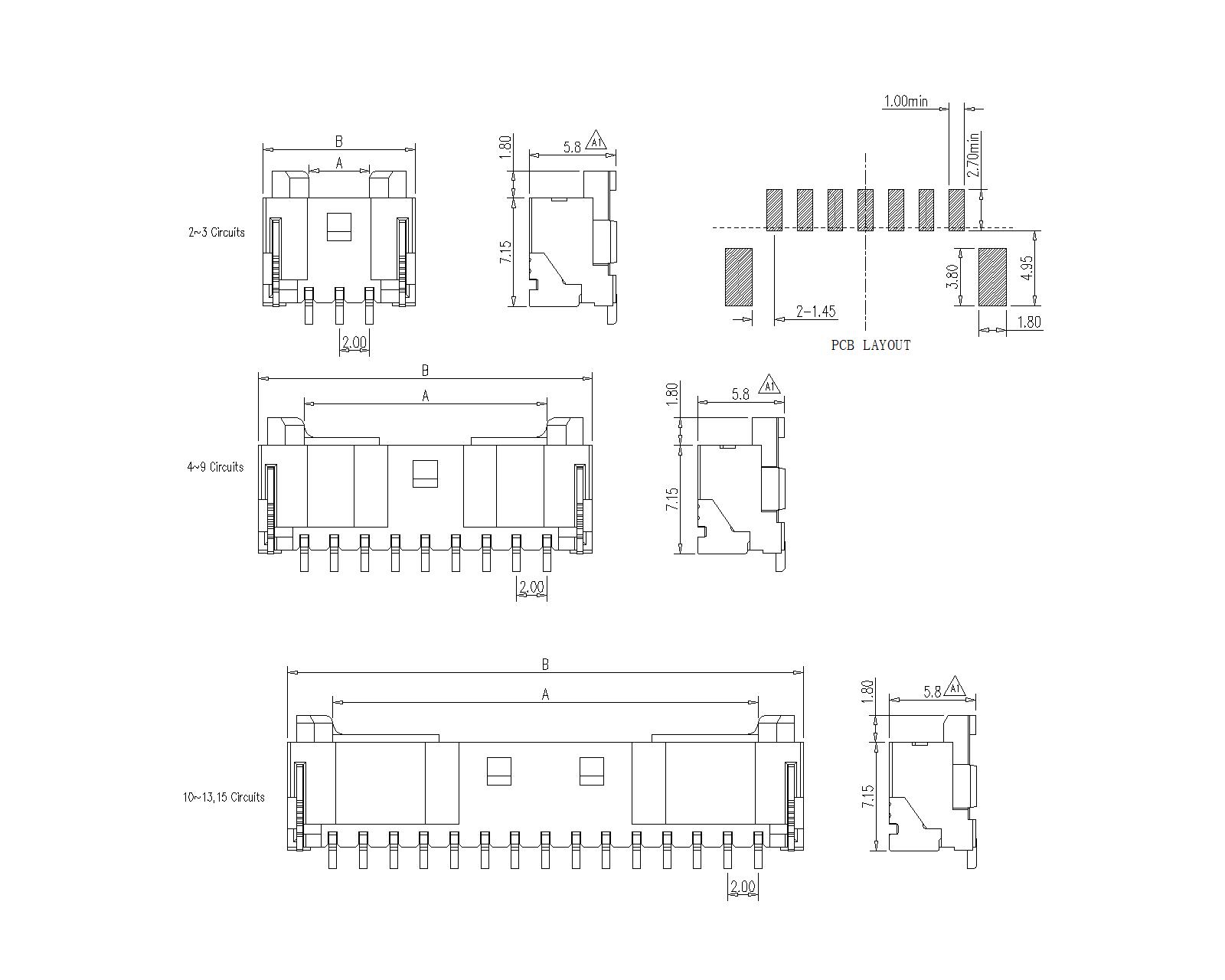

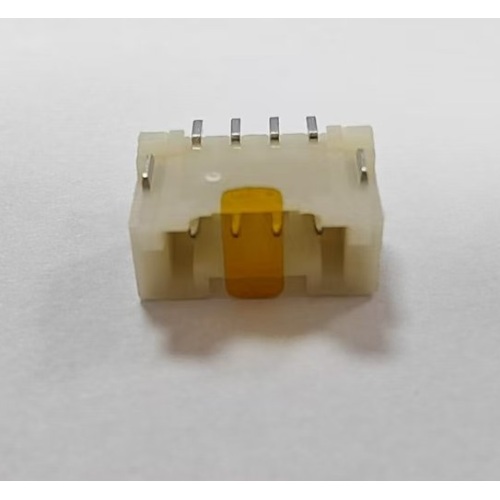

3.product picture
