2.0mm Pitch 90° SMT Wafer Connector With Post

1.product introduction

The appearance of high-density Wire To Board Connectors makes it possible to realize more signal channels in a limited space;The blind plug connector provides a more convenient way to plug and unplug, reducing the risk of misoperation;In addition, the improvement of waterproof, seismic, corrosion resistance and other properties also makes the Wire To Board Connectors can be applied in special environments.As an important technology, Wire To Board Connectors provide a reliable basis for efficient data transmission of modern electronic devices.It has a wide range of applications, not only in the field of communication plays an important role, but also in industrial, medical and other fields have a wide range of applications.As technology continues to innovate, Wire To Board Connectors will continue to evolve and adapt to new needs, bringing people a more efficient and reliable data transmission experience.

2.product parameter

 Specifications:
Current rating: 3A AC/DC (AWG #22)
Voltage rating: 250V AC/DC
Temperature range: -25°C to +85°C
(including temperature rise in applying electrical current)
Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
Insulation resistance: Initial/ 1,000 MΩ min.
Withstanding voltage: 800V AC/minute
Applicable wire: Conductor size/ AWG #28 to #22
Insulation O.D./ 0.76 to 1.5 mm
Applicable PC board thickness: 1.6 mm

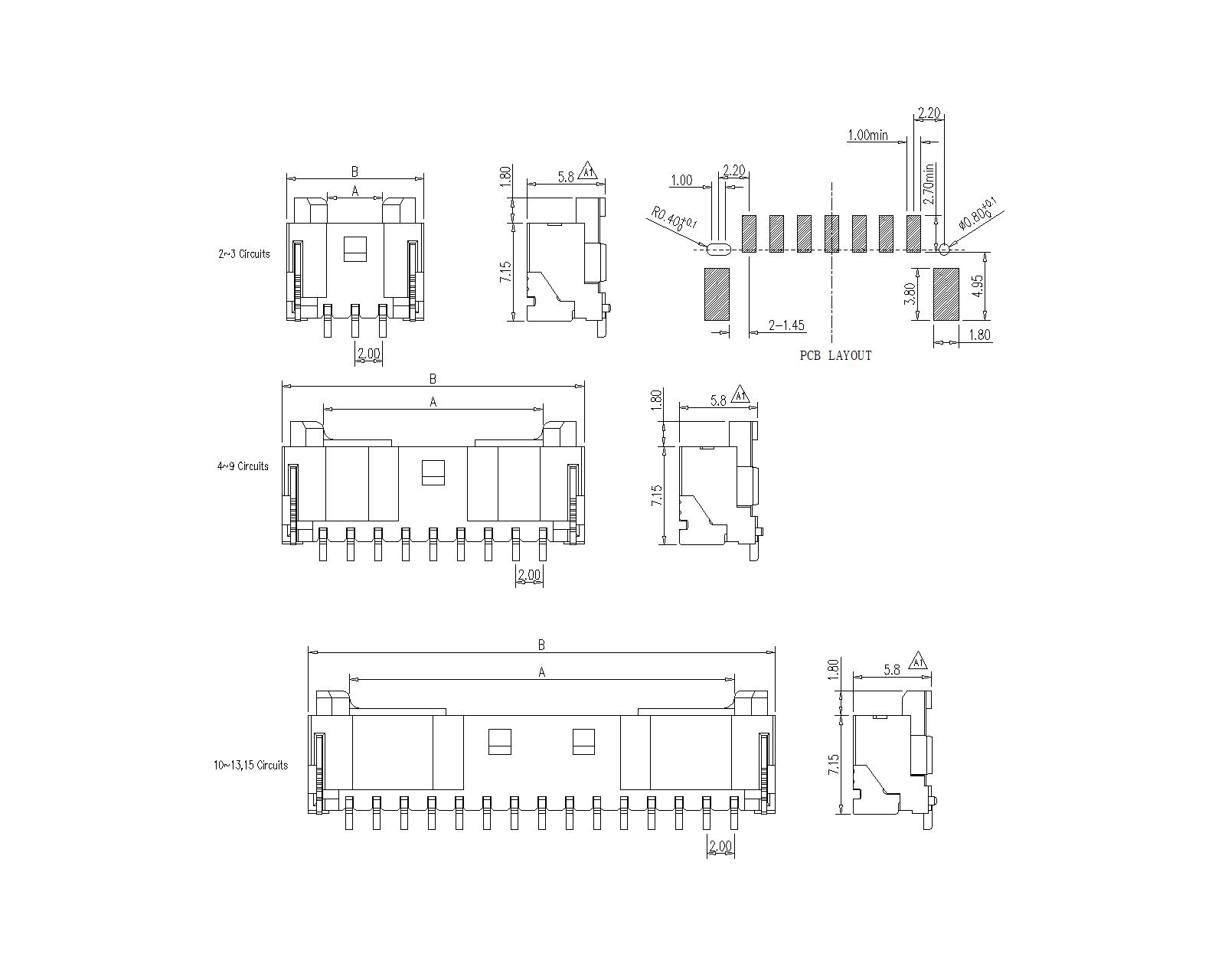

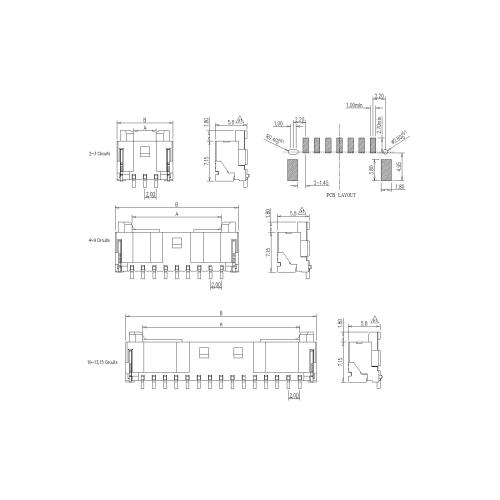

3.product picture
