2.00mm pitch 180°Dual Row Connector Series AW2010VA-2xNP

1.product introduction

 The appearance of high-density Wire To Board Connectors makes it possible to realize more signal channels in a limited space;The blind plug connector provides a more convenient way to plug and unplug, reducing the risk of misoperation;In addition, the improvement of waterproof, seismic, corrosion resistance and other properties also makes the Wire To Board Connectors can be applied in special environments.As an important technology, Wire To Board Connectors provide a reliable basis for efficient data transmission of modern electronic devices.It has a wide range of applications, not only in the field of communication plays an important role, but also in industrial, medical and other fields have a wide range of applications.As technology continues to innovate, Wire To Board Connectors will continue to evolve and adapt to new needs, bringing people a more efficient and reliable data transmission experience.

2.product parameter

SPECIFICATIONS
·Voltage rating：100V AC.DC
·Current rating：2A,AC,DC
·Withstanding Voltage：800V AC/minute
·Insulation resistance:1000MΩ min
·Temperature range：-40℃-+105℃

WAFER
·Part NO：AW2010VA-2xNP
·Material：Pin：Brass/Tin over Nickel
           Insulator：Nylon 6T，UL94V-0
·Mates with：AH2010A-2xNP series
 Dual Row Housing
·Color：Gray

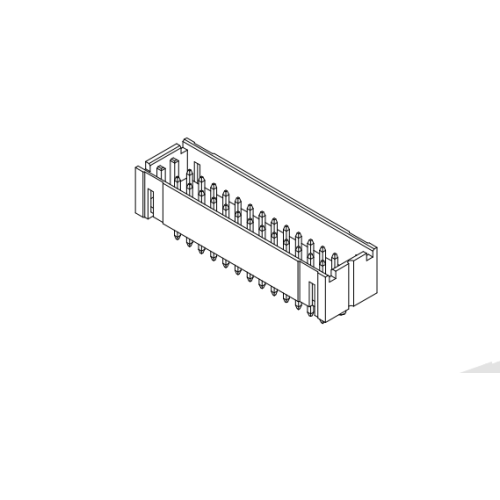

3.product picture
