2.00mm pitch 90°Dual RowSeries AW2008R-2xNP(PHB)

2.00mm pitch 90°Dual Row Wafer Connector Series AW2008R-2xNP(PHB)

1.product introduction

The Wire To Board Connectors is different, and its type is different, and each type has its own characteristics.Some Wire To Board Connectors are used in compact products and are denser than row pins.Application scenario: Widely used, conventional intelligent hardware products are basically used.Advantages: small size, large number of needles, 1 centimeter length can do 40 needles (the same size can only do 20 needles).Disadvantages: The structural design needs to be fixed and is expensive and cannot be plugged and unplugged frequently.

2.product parameter

 SPECIFICATIONS
1.Current Rating:3A AC, DC
2.Voltage Rating:250V AC,DC
3.Temperatuer Range: -25°C~+85°C
4.Contact Resistance: 20mΩ Max
5.Insulation Resistance:1000MΩ Min
6.Withstanding Voltage:800V AC/minute
7.Material :
Housing:Nylon66, UL94V-0
PIN:Brass,Tin-plated

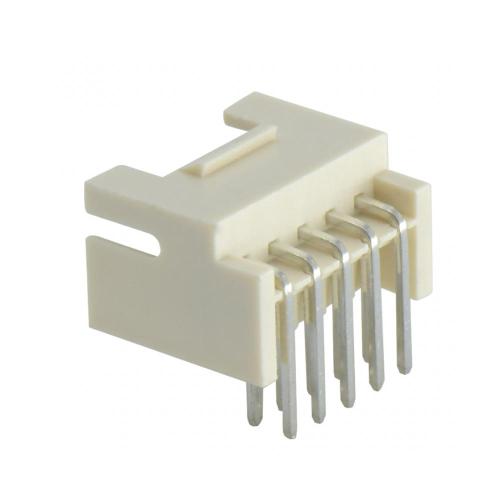

3.product picture
