2.00mm pitch 180° Wafer Connector Series AW2007VD-NP

1.product introduction

low crosstalk, high anti-interference ability and other characteristics to ensure accurate data transmission.At the same time, the Wire To Board Connectors also provides convenience for the maintenance and upgrade of the equipment, making the equipment more flexible and reliable.With the advancement of science and technology, Wire To Board Connectors are also constantly innovating and developing.For example, the emergence of high-density connectors makes it possible to achieve more signal channels in a limited space;The blind plug connector provides a more convenient way to plug and unplug, reducing the risk of misoperation;In addition, the Wire To Board Connectors improvement of waterproof, seismic, corrosion resistance and other properties also makes the wire-to-board connector can be applied in special environments.

2.product parameter

SPECIFICATIONS
·Voltage rating：125V AC.DC
·Current rating：4A,AC,DC
·Withstanding Voltage：1000V AC/minute
·Insulation resistance:1000MΩ min
·Temperature range：-40℃-+105℃

WAFER
·Part NO：AW2007VD-NP
·Material：Pin：Brass/Tin over Nickel
           Insulator：Nylon 66，UL94V-0
·Mates with：AH2007 series Housing
·Color：White

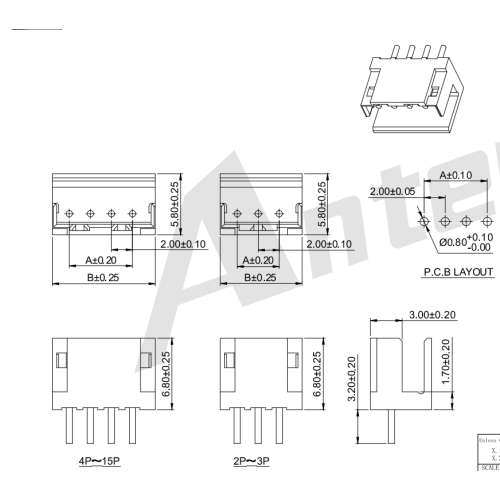

3.product picture
