2.00mm pitch 180°Dual Row Wafer With Boss-SMT

1.product introduction

The Wire To Board Connectors between the circuit board is different, and its type is different, and each type has its own characteristics.Some Wire To Board Connectors are used in compact products and are denser than row pins.Application scenario: Widely used, conventional intelligent hardware products are basically used.Advantages: small size, large number of needles, 1 centimeter length can do 40 needles (the same size can only do 20 needles).Disadvantages: The structural design needs to be fixed and is expensive and cannot be plugged and unplugged frequently.Wire To Board Connectors are widely used in various electronic equipment and communication systems, such as computers, mobile devices, network equipment, industrial control systems, etc.

2.product parameter

SPECIFICATIONS
·Voltage Rating：250V AC.DC
·Current Rating：2A,AC,DC
·Withstanding Voltage：800V AC/minute
·Insulation Resistance:1000MΩ Min
 Contact Resistance:30mΩ Max
·Temperature Range：-40℃-+105℃

WAFER
·Part NO：AW2006VA-S-F-2xNP
·Material：Pin：Brass/Tin Over Nickel
           Insulator：Nylon 6T，UL94V-0
·Mates with：AH2006 Dual Row Series Housing
·Color：Ivory

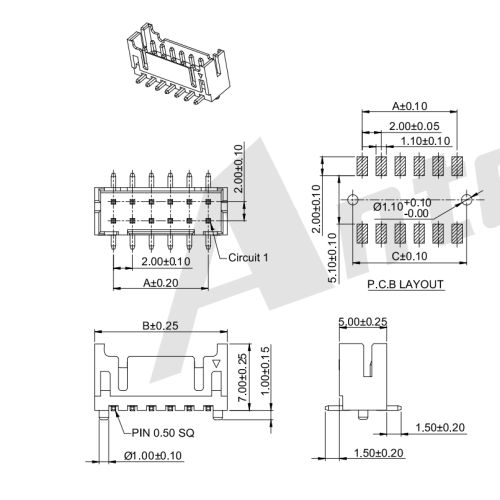

3.product picture
