2.00mm pitch 180° Wafer Connector Series AW2001V-xxP-X

1.product introduction

The appearance of high-density Wire To Board Connectors makes it possible to realize more signal channels in a limited space;The blind plug connector provides a more convenient way to plug and unplug, reducing the risk of misoperation;In addition, the improvement of waterproof, seismic, corrosion resistance and other properties also makes the wire-to-board connector can be applied in special environments.As an important technology, wire-to-board connectors provide a reliable basis for efficient data transmission of modern electronic devices.It has a wide range of applications, not only in the field of communication plays an important role, but also in industrial, medical and other fields have a wide range of applications.As technology continues to innovate, wire-to-board connectors will continue to evolve and adapt to new needs, bringing people a more efficient and reliable data transmission experience.

2.product parameter

 SPECIFICATIONS
·Voltage rating：100V AC.DC
·Current rating：2A,AC,DC
·Withstanding Voltage：800V AC/minute
·Insulation resistance:1000MΩ min
·Temperature range：-40℃-+105℃

WAFER
·Part NO：AW2001VR-xxP-X
·Material：Pin：Brass/Tin over Nickel
           Insulator：Nylon 66，UL94V-0
·Mates with：AH2001 series Housing
·Color：White

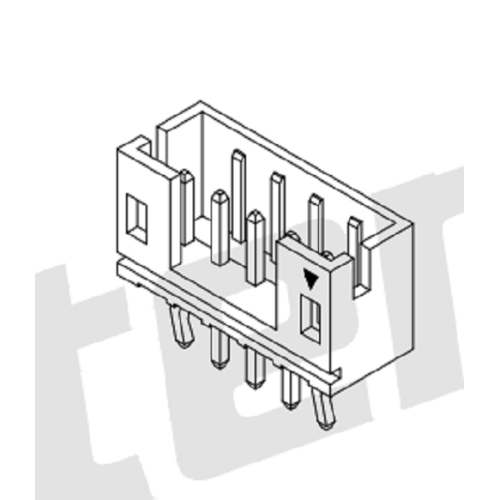

3.product picture
