Product Description

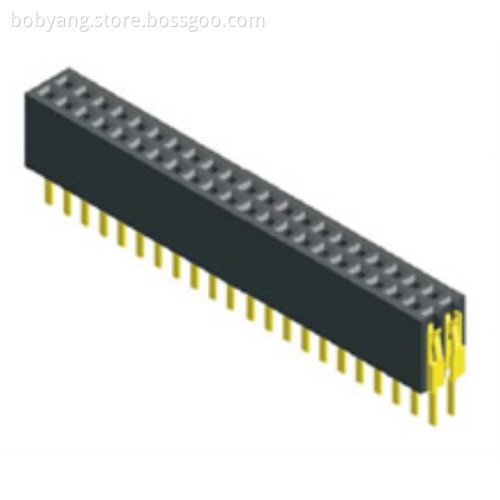

Shenzhen Antenk Electronics has promoted a Plastic High:H1:3.4mm to H2:4.3mm. 1.27mm Female Header Dual Row Straight Type connector.
Motherboard application: This connector is widely used in PCB boards of electronics, electrical appliances, meters, etc.
The role of the mother-in-law: Before the circuit is blocked or isolated circuits, it functions as a bridge and takes on the task of current or signal transmission. It is usually used in conjunction with the pin headers to form a board-to-board connection; or used in conjunction with an electronic harness to form a board-to-wire connection; it can also be used independently for board-to-board connection.

The company aims to provide world-class product quality with the implementation of internationally advanced management methods, and to provide customers with quality products and services. Our customer base has covered the Pearl River Delta, the Yangtze River Delta, the southeast coast, the mainland, Hong Kong and Taiwan, Southeast Asia, Europe and the United States. We sincerely hope to cooperate with new and old customers to create a win-win future!

1.No.of Contacts: 02To 100.

2.Connector Type: Dual Row.

3.Plastic High:3.4mm to 4.3mm.

(Other sizes can be selected).

4.Insulator Material : PA6T / LCP / PA9T.

5.Packing:Tray / Bag / Tube / Tube+CAP / Tape&Reel / Tape&Reel+CAP.

SPECIFICATION
Current Rating: 1Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator Material: PA6T UL 94V-0 Black

1.27 mm Female Header Dual Row Straight Type
