AW1258VM-xP 1.25mm Pitch 180 °Wafer SMT Type

1.product introduction

The Wire To Board Connectors between the circuit board is different, and its type is different, and each type has its own characteristics.Some Wire To Board Connectors are used in compact products and are denser than row pins.Application scenario: Widely used, conventional intelligent hardware products are basically used.Advantages: small size, large number of needles, 1 centimeter length can do 40 needles (the same size can only do 20 needles).Disadvantages: The structural design needs to be fixed and is expensive and cannot be plugged and unplugged frequently.Wire To Board Connectors are widely used in various electronic equipment and communication systems, such as computers, mobile devices, network equipment, industrial control systems, etc.

2.product parameter

Specifications:
Contact resistancefS 20m2
Ins ulation resistunge. z 500MN
Rated voltage:150V AC DC
Rated current:1.0Al AC DC
Withstand voltage : 500V AC/ minute
Temperature range:-25'C r
+85'C
Housing:LCP UL94V-0,Natural

Cap:LCP UL94V-0,Natural
Contacts:Phosphor bronze/ Matte sn
Solder tabs:Phosphor bronze / Matte sn

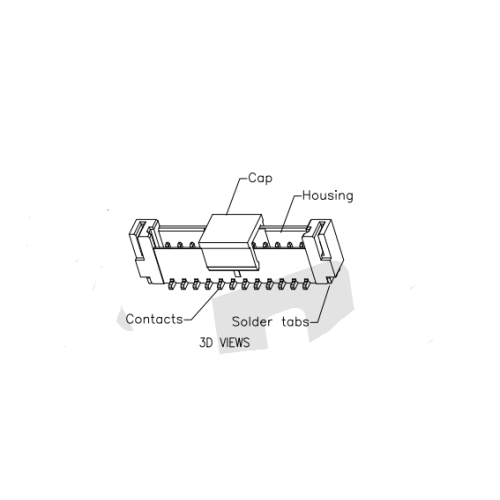

3.product picture
