1.25mm pitch 90°SMT Single Row Wafer AW1252R-S-xP

1.product introduction

The Wire To Board Connectors between the circuit board is different, and its type is different, and each type has its own characteristics.Some Wire To Board Connectors are used in compact products and are denser than row pins.Application scenario: Widely used, conventional intelligent hardware products are basically used.Advantages: small size, large number of needles, 1 centimeter length can do 40 needles (the same size can only do 20 needles).Disadvantages: The structural design needs to be fixed and is expensive and cannot be plugged and unplugged frequently.Wire To Board Connectors are widely used in various electronic equipment and communication systems, such as computers, mobile devices, network equipment, industrial control systems, etc.

2.product parameter

SPECIFICATIONS
·Voltage rating：150V AC.DC
·Current rating：1A AC,DC
·Withstanding Voltage：500V AC/minute
·Insulation resistance:500MΩ min
·Temperature range：-40℃-+105℃
WAFER
·Part NO：AW1252R-S-xP
·Material：Pin：Brass/Tin over Nickel
           Solder Tabs:Phosphor Bronze/Tin over Nickel
           Insulator：Nylon 6T，UL94V-0
·Mates with：AH1252 series Single Row Housing
·Color: Ivory

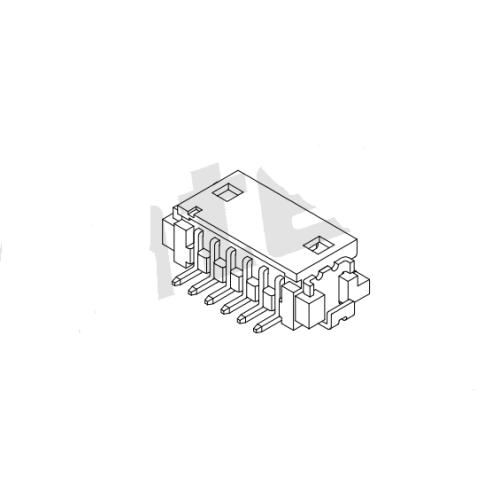

3.product picture
