1.00mm pitch 90°Single Row Wafer-SMT AW1002RB-S-xP

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	100000/month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,EXW
Certificate:	ISO9001/ISO14001
HS Code:	85369090
Transportation:	Ocean,Air,Express
Port:	shenzhen

Product Description

1.product introduction

Wire To Board Connectors is a product that connects different circuit boards together, its transmission capacity is better, and it is a good connector product in all connector product types at present, mainly used in financial manufacturing, medical equipment, communication networks, elevators, industrial automation, power systems, home appliances, office equipment, military manufacturing and other industries.The Wire To Board Connectors between the circuit board is different, and its type is different, and each type has its own characteristics.

2.product parameter

SPECIFICATIONS
·Voltage rating：50V AC.DC
·Current rating：1A,AC,DC
·Withstanding Voltage：500V AC/minute
·Insulation resistance:100MΩ min
·Temperature range：-40℃-+105℃

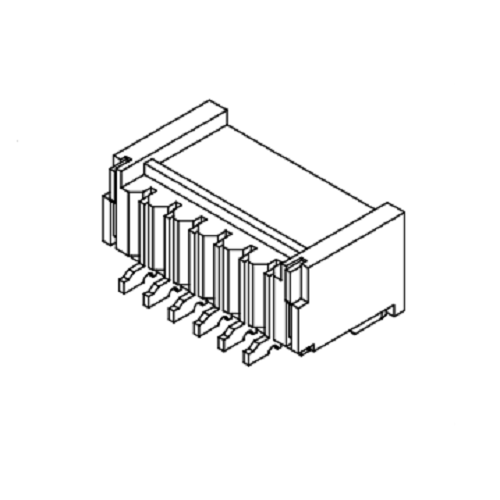

WAFER
·Part NO：AW1002RB-S-xP
·Material：Pin：Phosphor Bronze/Tin over Nickel
Solder Tabs: Phosphor Bronze/Tin over Nickel
Insulator:Nylon 9T UL94V-0
·Mates with:AH1002B-xP series Single Row Housing
·Color: Ivory
