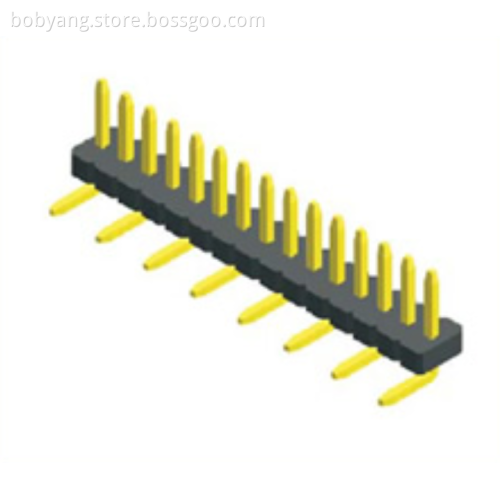

1.00 mm Pin Header Single Row SMT

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

1.00 mm Pitch single SMT connector, plastic height is 1.00 mm or 1.50 mm, docking A size and welding plate W size is selective, the PIN number 1 to50, the working temperature for - 65 ° C to + 125 ° C, in line with the UL certification, PIN needle available with tin plated, gold plated 1 u, 3 u, 5 u, "u" 10, 15 u "and 30 u".shorter delivery time, much competitive prices, high quality level with 100% quality control and UL approval for our products

Specifications:

Current Rating: 0.75Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator Material:PA6T,UL94V-0,Color:Black

1.00 mm Pin Header Single Row SMT Type

Send your message to this supplier

* From:
* To:

Mr. Bob Yang
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

1.00 Mm Pitch , Single Row SMT , Solder Foot Reverse Single Row Connector
