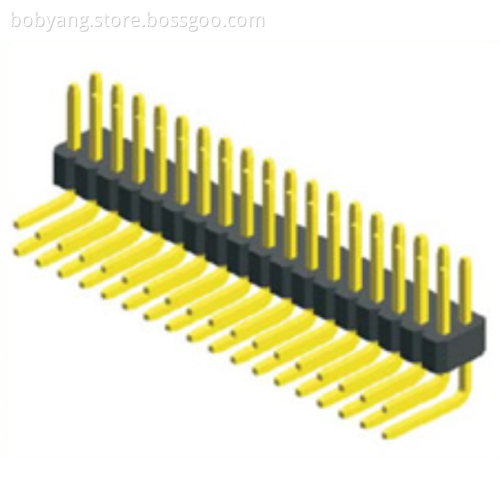

1.00 mm Pitch Dual Row Angle Type

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN

Product Description

Shenzhen Antenk electronics launching a 1.00 mm Pitch, double row, right Angle connector, Operating Temperature: 65 ° C to + 125 ° C, Max poles: 2 * 2 P to 50 P, plastic conform to UL, PIN available with tin plated, gold plated 1 u ", 3 u, 5 u, u 15 u ", "10 and 30 u".

Specifications:
Current Rating: 0.75Amp
Insulation Resistance:1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding:AC500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator Material: PA6T,UL94V-0,Color:Black

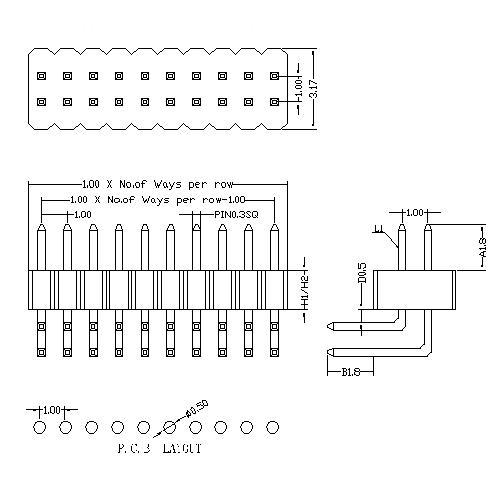

1.00 mm Pin Header Dual Row Angle Type PHBR02-XXD
