0.8mm Ptich Dual Row Double Plastic Straight

Get Latest Price

Payment Type:: T/T, Paypal

Incoterm:: FOB, CIF, EXW

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 14 Days

Transportation:: Ocean, Air

Port:: SHENZHEN, HONGKONG

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000K/month
Supply Ability:	10000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	SHENZHEN,HONGKONG

Product Description

Pitch: 0.8mm; Max Pole: 2*2P to 2*50P, Straight dual-row, double plastic; Manufacture pin connector for 10 years;With CE, RoHS marks; insulator: PA6T, PA9T, LCP ...available with tin plated, gold plated 1u,3u,5u,10u,15u and 30u.

SPECIFICATIONS:
Current Rating: 0.75Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°Cto+125°C
Contact Material: Brass
Insulator Material: PA6T,UL 94V-0 Black

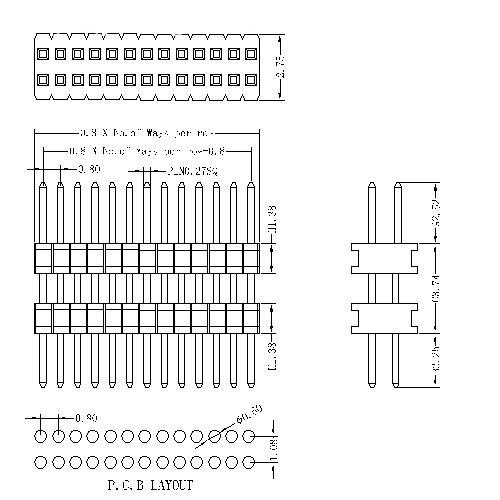

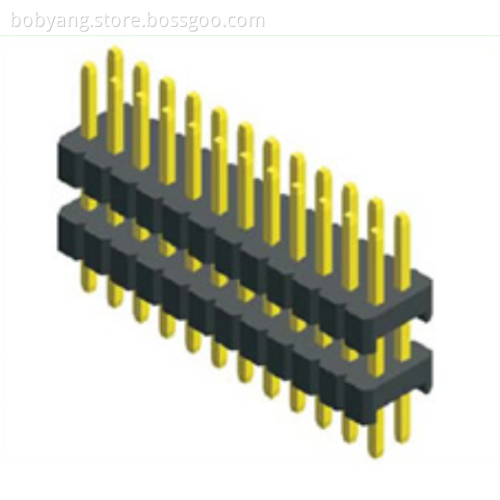

0.8 mm Pin Header Dual Row Double Plastic Straight Type PHAS02-XXD
