high temperature military battery pack 11.1V 5Ah
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 10-15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong |
1.Rapid Charge Battery Overcharge testing
2.Over discharge testing passe
3.150C thermal shock test
4.1.2m drop testing

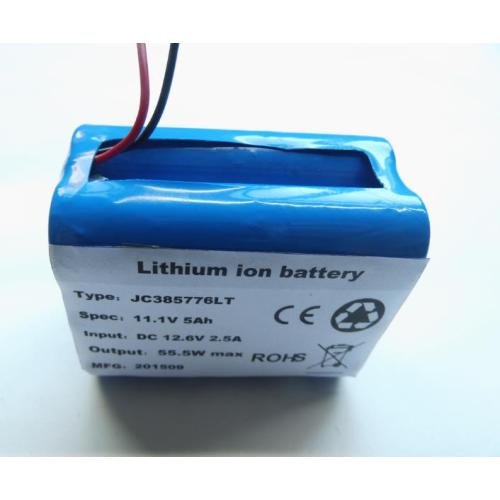

high temperature military battery lithium ion cell pack 11.1V 5Ah
|
NO. |
Items |
Specifications |
|||
|
1 |
Charge voltage |
12.6V |
|||
|
2 |
Nominal voltage |
11.1V (3S2P) |
|||
|
3 |
Initial impedance |
120mΩ |
|||
|
4 |
Nominal capacity |
5Ah |
|||
|
5 |
Minimum capacity |
4.9Ah |
|||
|
6 |
Low-temperature capacity |
≥3.0Ah |
When the battery is standard charged, it shall be put into chamber at ( -40±2 )℃for 8-16hrs,then discharged at 0.2C5A (1A) constant current to7.5V |
||
|
7 |
Charge current |
Standard Charging::0.2C5A (1A) Rapid charge:1.0C5A (5A) Max |
|||
|
8 |
Standard Charging method |
1A(0.2C5A) CC(constant current)charge to12.6V,then CV(constant voltage 12.6V)charge till charge current decline to ≤50mA(≈0.01C5A) |
|||
|
9 |
Charging time |
Standard Charging:6.5hours(Ref.) Rapid charge: 2.5hours(Ref.) |
|||
|
10 |
Max.discharge current |
5A(1C5A) |
|||
|
11 |
Discharge cut-off voltage |
7.5V |
|||
|
12 |
Shelf life |
2years |
|||
|
13 |
Cycle life (0.2C5A/0.2C5A) |
400 times,≧80%DOD |
|||
|
14 |
Operating temperature |
Charging: 0℃~45℃ Discharging:-40℃~+60℃ |
|||
|
15 |
Storage temperature |
Less than 1 month |
-10℃~+45℃ |
Percentage of recoverable capacity :85% |
|
|
Less than 6 month |
-40℃~+35℃ |
||||
|
16 |
Pack Weight |
Approx:310g |
|||
|
17 |
Pack Dimension |
Length: Max76.00 mm Width: Max57.00mm Thickness1:Max 38.00mm |
|||
