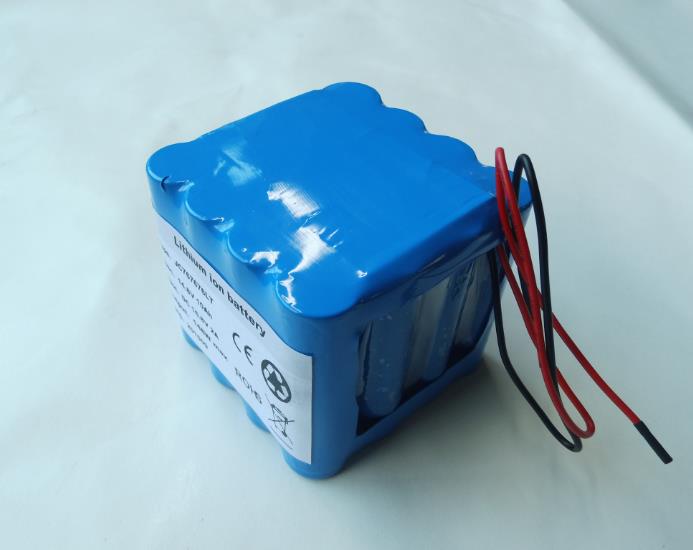

14.8V 10Ah high capacity lithium battery pack
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 10-15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong |
This 10Ah Battery Pack has Low temperature capacity more than 7.0Ah as it has high discharge capacity ,in the meantime if put High Capacity Battery in rapid charge ,only need 2.5hrs can be finished.it can be applied to use as :
1.Lithium Cell Battery can be used to telecommunications,Audio&vidio Devices,laptop,GPS,POSmachines ,E-Bike,EV,GPS,POSmachines,smart robot,miner lamps,etc
2.Custom instrumentation lithium battery pack: flaw detector, high-speed rail track detector, mapping device, detector, 3.network hunt, etc.
3.Customized medical equipment lithium battery pack: B-machine, ECG machine, monitor, ventilator, anesthesia machine, infusion pump, etc.
14.8V 10Ah details as below :
|
NO. |
Items |
Specifications |
|||
|
1 |
Charge voltage |
16.8V |
|||
|
2 |
Nominal voltage/ |
14.8V (4S4P) |
|||
|
3 |
Initial impedance |
200mΩ |
|||
|
4 |
Nominal capacity |
10Ah |
|||
|
5 |
Minimum capacity |
9.8Ah |
|||
|
6 |
Low-temperature capacity |
≥7.0Ah |
When the battery is standard charged, it shall be put into chamber at ( -40±2 )℃ for 8-16hrs,then discharged at 0.2C5A (2A) constant current to10.0V |
||
|
7 |
Charge current |
Standard Charging::0.2C5A (2A) Rapid charge:1.0C5A C(10A) Max |
|||
|
8 |
Standard Charging method |
2A(0.2C5A) CC(constant current)charge to 16.8V,then CV(constant voltage 16.8V)charge till charge current decline to ≤100mA(≈0.01C5A) |
|||
|
9 |
Charging time |
Standard Charging:6.5hours(Ref.) Rapid charge: 2.5hours(Ref.) |
|||
|
10 |
Max.discharge current |
10A(1C5A) |
|||
|
11 |
Discharge cut-off voltage |
10.0V |
|||
|
12 |
Shelf life |
2years |
|||
|
13 |
Cycle life (0.2C5A/0.2C5A) |
≧80%DOD; 500 times,≧80%DOD |
|||
|
14 |
Operating temperature |
Charging: 0℃~45℃ Discharging:-40℃~+60℃ |
|||
|
15 |
Storage temperature |
Less than 1 month |
-10℃~+45℃ |
Percentage of recoverable capacity :85% |
|
|
Less than 6 month |
-40℃~+35℃ |
||||
|
16 |
Pack Weight |
Approx:820g |
|||
|
17 |
Pack Dimension |
Length: Max76.00 mm Width: Max76.00mm Thickness1:Max 76.00 mm |
|||
