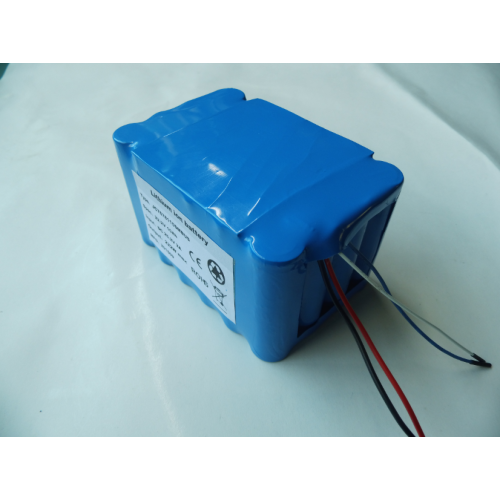

Custom 18650 battery pack 22.2V 10Ah with smbus
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 10-15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong |
The series of 22.2V lithium ion batteries can be widely used in:
Wireless speakers, POS machines, flashlights, communication equipments, payment terminals, heated clothes, medical Analytical instruments, medical electric bone drill, engineering test machine, Data receiving apparatus, portable speaker products, industrial computer, etc.
22.2V 10Ah rechargeable lipo battery with SMBUS data communication and LCD display
|
NO. |
Items |
Specifications |
||
|
1 |
Charge voltage |
25.2V |
||
|
2 |
Nominal voltage |
22.2V (6S4P) |
||
|
3 |
Initial impedance |
280mΩ |
||
|
4 |
Nominal capacity |
10Ah |
||
|
5 |
Minimum capacity |
9.8Ah |
||
|
6 |
Charge current |
Standard Charging::0.2C5A (2A) Rapid charge:0.5C5A C(5A) Max |
||
|
7 |
Standard Charging method |
2A(0.2C5A) CC(constant current)charge to25.2V,then CV(constant voltage 25.2V)charge till charge current decline to ≤100mA(≈0.01C5A) |
||
|
8 |
Charging time |
Standard Charging:6.5hours(Ref.) Rapid charge: 3.5hours(Ref.) |
||
|
9 |
Max.discharge current |
10A(1.0C5A) |
||
|
10 |
Discharge cut-off voltage |
15.0V |
||
|
11 |
Shelf life |
2 years |
||
|
12 |
Cycle life (0.2C5A/0.2C5A) |
500 times,≧80%DOD |
||
|
13 |
Operating temperature |
Charging: 0℃~45℃ Discharging:-20℃~+60℃ |
||
|
14 |
Storage temperature |
Less than 1 month |
-10℃~+45℃ |
Percentage of recoverable capacity :85% |
|
Less than 6 month |
-20℃~+35℃ |
|||
|
15 |
Pack Weight |
Approx:1250g |
||
|
16 |
Pack Dimension |
Length: Max115.00mm Width: Max78.00mm Thickness:Max76.00 mm |
||
