14.8V 10.4Ah lithium battery with smbus
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 10-15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong |
Key technology of battery management system for 14.8V Military Pack with Smbus
1. requirements of battery management system on sensor signals for Smart Battery Smbus
2 single chip voltage acquisition accuracy 10.4Ah Lithium Battery Pack
In general, every battery voltage in a battery pack needs to be collected for safety monitoring. Different systems require different precision.

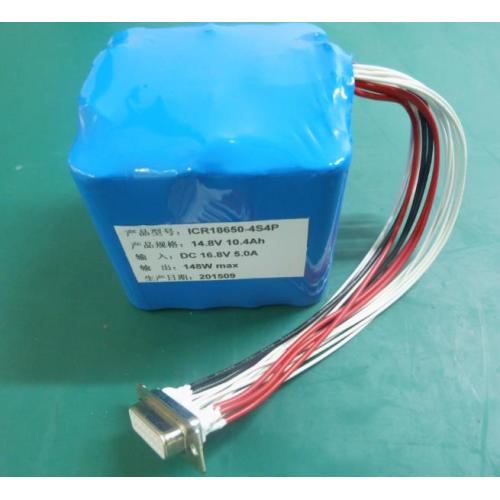

14.8V 10.4Ah rechargeable li ion battery pack with SMBUS data communication
|
NO. |
Items |
Specifications |
||
|
1 |
Charge voltage |
16.8V |
||
|
2 |
Nominal voltage |
14.8V (4S4P) |
||
|
3 |
Initial impedance |
190mΩ |
||
|
4 |
Nominal capacity |
10.4Ah |
||
|
5 |
Minimum capacity |
10.2Ah |
||
|
6 |
Communication methods |
SMBUS data communication |
||
|
7 |
Charge current |
Standard Charging::0.5C5A (5.2A) Rapid charge:1.0C5A C(10.4A) Max |
||
|
8 |
Standard Charging method |
5.2A(0.5C5A) CC(constant current)charge to16.8V,then CV(constant voltage 16.8V)charge till charge current decline to ≤104mA(≈0.01C5A) |
||
|
9 |
Charging time |
Standard Charging:6.5hours(Ref.) Rapid charge: 2.5hours(Ref.) |
||
|
10 |
Max.discharge current |
10.4A(1.0C5A) |
||
|
11 |
Discharge cut-off voltage |
11.0V |
||
|
12 |
Shelf life |
2 years |
||
|
13 |
Cycle life (0.2C5A/0.2C5A) |
500 times,≧80%DOD |
||
|
14 |
Operating temperature |
Charging: 0℃~45℃ Discharging:-20℃~+60℃ |
||
|
15 |
Storage temperature |
Less than 1 month |
-10℃~+45℃ |
Percentage of recoverable capacity :85% |
|
Less than 6 month |
-20℃~+35℃ |
|||
|
16 |
Pack Weight |
Approx:800g |
||
|
17 |
Pack Dimension |
Length: Max74.00mm Width: Max74.00 mm Thickness1:Max 67.00 mm |
||
