High Quality 25mm 38mm 50mm 76mm Ceramic Raschig Rings Packing

High Quality 25mm 38mm 50mm 76mm Ceramic Raschig Rings Packing

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000 Cubic Meters/Year
Supply Ability:	5000 Cubic Meters/Year
Payment Type:	L/C, T/T, D/P, Western Union

Product Description

Model NO.: 6mm, 10mm, 25mm, 38mm, 50mm

Size: 25mm, 38mm, 50mm, 76mm

Certificate: ISO9001: 2000

Trademark: JINCHENG

Transport Package: by Carton Box, Palletized with Wrapped.

Specification: 6mm, 10mm, 16mm, 25mm, 40mm, 50mm, 80mm etc.

Origin: China

HS Code: 6909110000

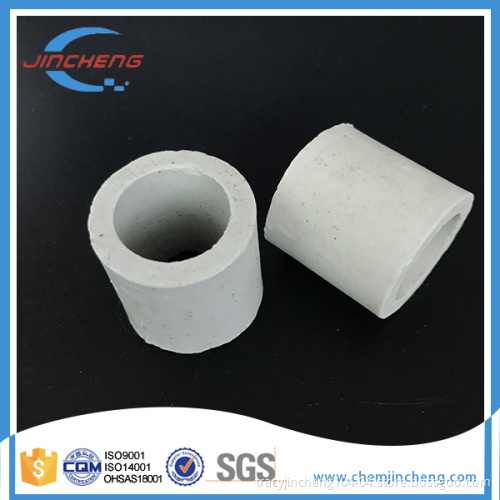

Ceramic Raschig Ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.

Technical date
Spec.	*DHT(mm)*	Surface area (m 2 /m 3 )	Free volume (%)	Number per m 3	Bulk density (kg/m 3 )	Dry Packing Factor(m-1)
Dia.6	*662*	789	73	3110000	737	2030
Dia.10	*10102*	440	70	720000	700	1280
Dia.15	*15152*	330	70	250000	690	960
Dia.16	*16162*	305	73	192500	730	784
Dia.25	*25252.5*	190	78	49000	505	400
Dia.40	*40405*	126	75	12700	577	305
Dia.50	*50505*	93	81	6000	457	177
Dia.80	*80809.5*	90	68	1910	714	234
Dia.100	*10010010*	70	70	1000	700	172
Dia.150	*15015015*	50	68	295	790	172

Send your message to this supplier

* From:
* To:

Ms. Tracy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Ceramic Raschig Ring , Raschig Ring , Random Packing
