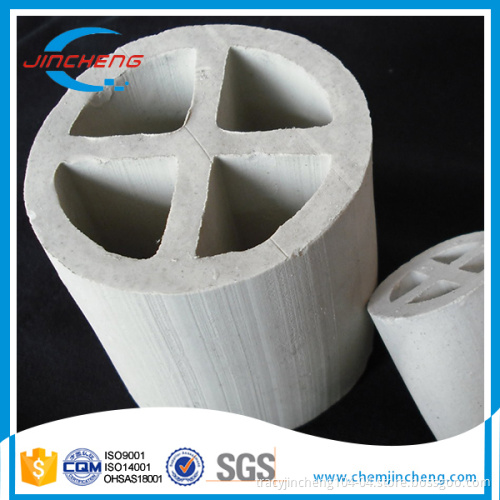

Ceramic Cross-Partition Ring for Dry, Absorbing, Cooling, Washing Tower

Ceramic Cross-Partition Ring for Dry, Absorbing, Cooling, Washing Tower

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000 Cubic Meters/Year
Supply Ability:	5000 Cubic Meters/Year
Payment Type:	L/C, T/T, D/P, Western Union

Product Description

Model NO.: 50mm, 80mm, 100mm, 120mm, 150mm

Size: 50mm, 80mm, 100mm, 120mm, 150mm

Certificate: ISO9001:2000

Trademark: JINCHENG

Transport Package: by Carton Box, Palletized with Wrapped.

Specification: 50mm, 80mm, 100mm, 120mm, 150mm

Origin: China

HS Code: 6909110000

Ceramic Cross-Partition Ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.

Technical date
Spec.	*DHT (mm)*	Surface area (m2/m3)	Free volume (%)	Number per m3	Bulk density (kg/m3)	Dry Packing Factor (m-1)
Ø 50	*5040505**	145	50	6,400	600	565
Ø 80	*8064808**	120	56	1,950	820	356
Ø 100	*1008010010**	110	53	1,000	850	252
Ø 120	*1209612012**	75	55	370	860	146
Ø 150	*15012015015**	60	58	295	980	101
