Programmable Street Light LED Driver
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 1-45 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300,000pcs/month |
| Supply Ability: | 300,000pcs/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF,FCA |
| Certificate: | CE,UL,ENEC,SAA,BIS,KC,etc.. |
| HS Code: | 8504409999 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou,Hongkong |

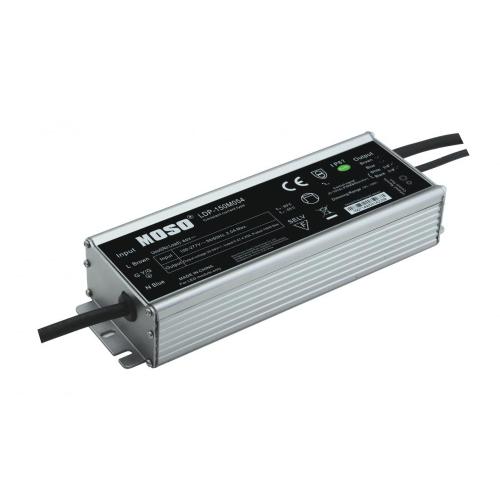

Programmable Street Light Constant Current LED Driver
The 150W Programmable LED Power Supply is one model of the LDP series IR programmable LED driver. This series Programmable Outdoor Lighting LED Driver are applied for LED street lighting, industrial lighting and landscape lighting. All LDP Dimmable LED Street Lighitng Driver are programmable via an IR remote controller, easy to set. 3 in 1 dimming modes 0-10V, PWM and Timing optional, one driver works for different lighting designs. The drivers built-in timer dimming schedules help to save energy and reduce CO2, friendly to the environment. Drivers' metal case and high efficiency enables the driver to operating with high reliability, and extending the lifetime.
Product features:
Use MCU control to limit the delivered power, output current configurable, output voltage self-reacting;
Built-in 3-in-1 dimming and auto-react: 0-10Vdc, PWM signal, timming control;
Signal amplitude can be 5V or 10V;
Equipped with interactive visual software to customize output setting;
Universal input voltage: (90 ~ 305)Vac;
Soft-switching patented technology, high efficiency up to 93%;
Overall protection: Short circuit / Over temperature / Over voltage;
Surge immunity: DM-5KV, CM-10KV;
IP67, glue potted, suitable for dry / wet / damp locations;
Complied with CCC/CE/CB/ENEC/SAA/BIS/UL safety regulations.
Ambient temperature: -40℃ ~ +60℃.
Technical Parameters:
Output Current & Voltage Range:
Product Dimension:
105W Outdoor LED Driver Model List:
| Part No. | Vin (Vac) | Pout (W) | Vout Min | Vout Max | Iout (A) | Full-Power Current Range (A) | IP | Dimming | Eff. @ 220 Vac |
| LDP-105R062 | 90 ~ 305 | 105 | 20 | 62 | 0.30~3.00 | 1.69~3.00 | 67 | Timer dimming | 90.0% |
| LDP-105R150 | 90 ~ 305 | 105 | 60 | 150 | 0.14~1.40 | 0.70~1.40 | 67 | Timer dimming | 91.0% |
| LDP-105R305 | 90 ~ 305 | 105 | 120 | 305 | 0.10~0.86 | 0.344~0.86 | 67 | Timer dimming | 91.0% |
| LDP-105M062 | 90 ~ 305 | 105 | 20 | 62 | 0.30~3.00 | 1.69~3.00 | 67 | 0-10V/PWM/Resistor/Timing control | 90.0% |
| LDP-105M150 | 90 ~ 305 | 105 | 60 | 150 | 0.14~1.40 | 0.70~1.40 | 67 | 0-10V/PWM/Resistor/Timing control | 91.0% |
| LDP-105M305 | 90 ~ 305 | 105 | 120 | 305 | 0.10~0.86 | 0.344~0.86 | 67 | 0-10V/PWM/Resistor/Timing control | 91.0% |
Application:
LED street / tunnel lighting, industrial lighting, flood lighting, grow lights, stadium lighting, etc.
About MOSO:
MOSO has set several distributors in Europe, United States, Latin America, Asia and Australia. All MOSO outdoor led driver provide 5 years global warranty. In case of any failure, customers can get replacement either from MOSO directly or any one of MOSO distributors.
Country
Distributor
Tel
Website
USA
Component
Distributors, Inc.
+1
303 357 2732
www.cdiweb.com
Canada
DB
Lectro Inc.
+1
888 394 1424
www.dblectro.com
Sweden
Vanpee
AB
+46
11 213422
www.vanpee.se
Norway
Vanpee
AB
+47
91 87 47 17
www.vanpee.no
Poland
MPL
Power Elektro SP. z o.o.
+48
32 44 00 950
www.mplpower.pl
Spain
INELEC,
S.A.
+ 34
91 726 35 07
www.inelec.net
Portugal
Italy
Welt
Electronic Spa
+39
055 302 631
www.weltelectronic.it
Russia
Intech
Lighting
+7
(812) 370 60 70
www.intech-light.ru
(Group of Macro companies)
Turkey
ISIKLAR
LED
+90
216 445 70 03
www.isiklarled.com
Turkey
PEGASUS
Elektronik
+90
212 322 71 00
www.pgsel.com
India
LUMENS
TECHNOLOGIES PVT LTD.
+91
22 2595 0265
www.lumenstech.in
Southeast Asia
Supreme
Components International
+65
6848 1178
www.lightingcompass.com/moso/
Hong Kong
PEGASUS
Electronics
+(852)
2153 8686
www.pgsel.com
MOSO always dedicates to providing professional outdoor lighting solutions. Please feel free to contact our sales team if you need any support!
MOSO Power Supply Technology Co., Ltd
Factory: Moso Industrial Park, Songbai Road, Xili Town, Nanshan District, Shenzhen, 518108, China.
