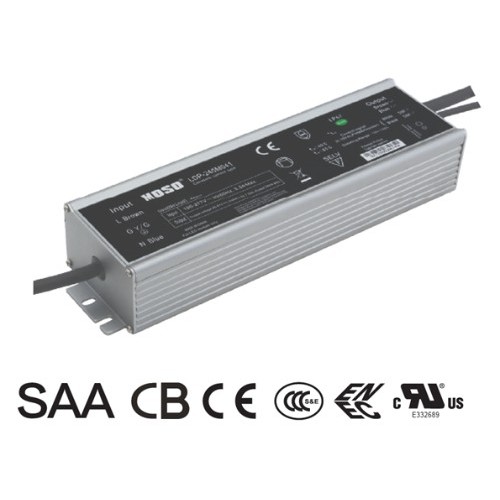

240W Outdoor Dimmable LED Power Supply
This 240W LED power supply is a 3 in 1 dimmable LED driver with 0-10V/PWM/Timming control that operates in constant current model.
And the IR technology make this IP67 programmable LED driver to configure variety output for different lighting designs. To save energy and reduct CO2, the 240W LED Power Supply built-in timer dimming schedules. Multiple protection SCP, OVP, OTP help to reduce the product failure rate. And the metal case and high efficiency enables the driver to operating with high reliability, and extending lifetime of the drivers.
Product features:
Use MCU control to limit the delivered power, output current configurable, output voltage self-reacting;
Built-in 3-in-1 dimming and auto-react: 0-10Vdc, PWM signal, timming control;
Signal amplitude can be 5V or 10V;
Equipped with interactive visual software to customize output setting;
Universal input voltage: (90 ~ 305)Vac;
Soft-switching patented technology, high efficiency up to 93%;
Overall protection: Short circuit / Over temperature / Over voltage;
Surge immunity: DM-5KV, CM-10KV;
IP67, glue potted, suitable for dry / wet / damp locations;
Complied with CCC/CE/CB/ENEC/SAA/BIS/UL safety regulations.
Ambient temperature: -40℃ ~ +60℃.
Technical Parameters:
| Basic Specification | Series | LDP-240M |
| Part No. | LDP-240M062 | |
| Datasheet Link | Datasheet | |
| Type | CC/CP | |
| Input Voltage (Vac) | 90 ~ 305 | |
| Output Power (W) | 240 | |
| Min Output Voltage (Vdc) | 20 | |
| Typical Output Voltage (Vdc) | - | |
| Max Output Voltage (Vdc) | 62 | |
| Output Current (A) | 0.52~5.20 | |
|
Full-Power Current Range (A)
(Only applicable for Programmable Drivers with Constant Power Design )
|
3.87~5.20 | |
| No Load Voltage Max(V) | 80 | |
| Vaux Typical Voltage (V) | - | |
| Vaux Max Current (mA) | - | |
| IP | 67 | |
| Power Stages | 2 | |
| Dimming | 0-10V/PWM/Resistor/Timing control | |
| Dim-to-Off | - | |
| SCP Mode | Auto Recovery | |
| OTP Mode | Decrease Current | |
| Surge Protection L-L | 5KV | |
| Surge Protection L-GND | 10KV | |
| THD | ≤15% | |
| Power Factor @ 220 Vac | 0.96 | |
| Power Factor @ 277 Vac | - | |
| Power Factor @ 480 Vac | - | |
| Eff. @ 220 Vac | 92.0% | |
| Eff. @ 277 Vac | - | |
| Eff. @ 480 Vac | - | |
| Application | Installation Type (Independent) | Yes |
| Installation Type (Built in luminaire) | Yes | |
| Used for Dry & Damp Location | Yes | |
| Used for Wet, Dry & Damp Location | Yes | |
| Class I Luminaire | Yes | |
| Class II Lumianire | - | |
| TYPE TL | √ | |
| TYPE HL | - | |
| Reliability | Calculated MTBF (hours) | 200,000 |
| Lifetime (hours) | 50,000 | |
| Operating Temp min ( °C ) | -40 | |
| Operating Ambient max ( °C ) | 60 | |
| Global Certification | UL | √ |
| UL Listed | ||
| ClassP | ||
| CE | √ | |
| ENEC | √ | |
| CCC | √ | |
| PSE | - | |
| TUV | √ | |
| KC | √ | |
| KS | √ | |
| CB | √ | |
| BIS | √ | |
| EAC | √ | |
| TUV | - | |
| SAA | √ | |
| DALI test completed | - | |
| Dimension | Dimension (mm) Length | 247 |
| Dimension (mm) Width | 68 | |
| Dimension (mm) Height | 43.5 |
Output Current & Voltage Range:
Product Dimension:
105W Outdoor LED Driver Model List:
| Part No. | Vin (Vac) | Pout (W) | Vout Min | Vout Max | Iout (A) | Full-Power Current Range (A) | IP | Dimming | Eff. @ 220 Vac |
|
LDP-240M041 |
90 ~ 305 |
240 |
20 |
41 |
0.75~7.50A |
5.86~7.50 |
67 |
0-10V/PWM/Resistor/Timing control |
92.0% |
|
LDP-240M062 |
90 ~ 305 |
240 |
20 |
62 |
0.52~5.20A |
3.87~5.20 |
67 |
0-10V/PWM/Resistor/Timing control |
92.0% |
|
LDP-240M180-A |
90 ~ 305 |
240 |
80 |
140 |
0.21~2.10A |
1.72~2.10 |
67 |
0-10V/PWM/Resistor/Timing control |
92.0% |
|
LDP-240M180-B |
90 ~ 305 |
240 |
130 |
180 |
0.17~1.72A |
1.33~1.72 |
67 |
0-10V/PWM/Resistor/Timing control |
92.0% |
|
LDP-240M368-A |
90 ~ 305 |
240 |
190 |
280 |
0.11~1.10A |
0.86~1.10 |
67 |
0-10V/PWM/Resistor/Timing control |
93.0% |
|
LDP-240M368-B |
90 ~ 305 |
240 |
260 |
368 |
0.09~0.89A |
0.65~0.89 |
67 |
0-10V/PWM/Resistor/Timing control |
93.0% |
|
LDP-240R041 |
90~305 |
240 |
20 |
41 |
0.75~7.50A |
5.86~7.50 |
67 |
Timer dimming |
92.0% |
|
LDP-240R062 |
90~305 |
240 |
20 |
62 |
0.52~5.20A |
3.87~5.20 |
67 |
Timer dimming |
92.0% |
|
LDP-240R180-A |
90~305 |
240 |
80 |
140 |
0.21~2.10A |
1.72~2.10 |
67 |
Timer dimming |
92.0% |
|
LDP-240R180-B |
90~305 |
240 |
130 |
180 |
0.17~1.72A |
1.33~1.72 |
67 |
Timer dimming |
92.0% |
|
LDP-240R368-A |
90~305 |
240 |
190 |
280 |
0.11~1.10A |
0.86~1.10 |
67 |
Timer dimming |
93.0% |
|
LDP-240R368-B |
90~305 |
240 |
260 |
368 |
0.09~0.89A |
0.65~0.89 |
67 |
Timer dimming |
93.0% |
Application:
LED street / tunnel lighting, industrial lighting, flood lighting, grow lights, stadium lighting, etc.
