waterproof programmable led driver for outdoor led lighting

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Productivity:	400,000 per month
Supply Ability:	400,000 per month
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	SAA/TUV/CB/CE/CCC/ENEC/UL/CLASS P/DALI
HS Code:	8504401400
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Hongkong

Product Description

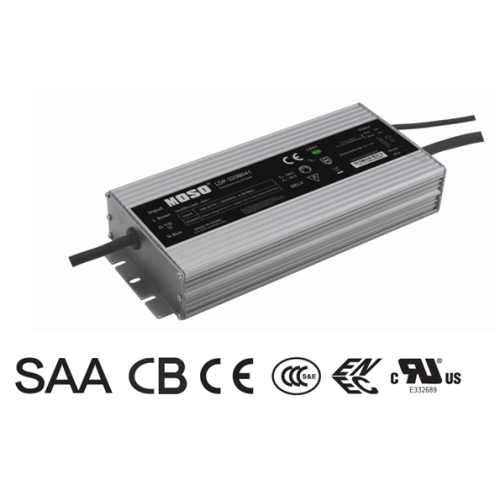

320W waterproof programmable led driver for outdoor led lighting

The universal programmable waterproof led driver provide IP67 waterproof degree options and a wide range of outdoor application. Which offer maximum flexibility with customized operating settings and intelligent control options. So one outdoor waterprooof lighting led driver can be programmed for many different luminaire designs. LDP-320R062 model street light led driver provides multiple protection for SCP, OVP and OTP.

E6 320w Ce

street light led driver

Product features:

Use MCU control to limit the delivered power, output current configurable, output voltage self-reacting;
Built-in 3-in-1 dimming and auto-react:0-10Vdc, PWM signal, timer control;
Signal amplitude can be 5V or 10V;
Equipped with interactive visual software to customize output setting;
Universal input voltage: (90 ~ 305)Vac;

Soft-switching patented technology, high efficiency up to 93%;

Overall protection: Short circuit / Over temperature / Over voltage;
Surge immunity: DM-5KV, CM-10KV;
IP67, glue potted, suitable for dry / wet / damp locations;
Complied with CCC/CE/CB/ENEC/SAA/BIS/UL safety regulations.
Ambient temperature: -40℃ ~ +60℃.

Technical Parameters:

Basic Specification	Series	LDP-320R
	Part No.	LDP-320R062
	Datasheet Link	Datasheet
	Type	CC/CP
	Vin (Vac)	90 ~ 305
	Pout (W)	320
	Vout Min	20
	Vout Typ	-
	Vout Max	62
	Iout (A)	0.82~8.20
	Full-Power Current Range (A) (Only applicable for Programmabel Drivers with Constant Power Design )	5.16~8.20
	No Load Voltage Max(V)	80
	Vaux Typical Voltage (V)	-
	Vaux Max Current (mA)	-
	IP	67
	Power Stages	2
	Dimming	Timer dimming
	Dim-to-Off	-
	SCP Mode	Auto Recovery
	OTP Mode	Decrease Current
	Surge Protection L-L	5KV
	Surge Protection L-GND	10KV
	THD	≤15%
	Power Factor @ 220 Vac	0.96
	Power Factor @ 277 Vac	-
	Power Factor @ 480 Vac	-
	Eff. @ 220 Vac	92.0%
	Eff. @ 277 Vac	-
	Eff. @ 480 Vac	-
Application	Installation Type (Independent)	Yes
	Installation Type (Built in luminaire)	Yes
	Used for Dry & Damp Location	Yes
	Used for Wet, Dry & Damp Location	Yes
	Class I Luminaire	Yes
	Class II Lumianire	-
	TYPE TL	√
	TYPE HL	-
Reliability	Calculated MTBF (hours)	200,000
	Lifetime (hours)	50,000
	Operating Temp min ( °C )	-40
	Operating Ambient max ( °C )	60
Global Certification	UL	√
	UL Listed
	ClassP
	CE	√
	ENEC	√
	CCC	√
	PSE	-
	TUV	√
	KC	-
	KS	-
	CB	√
	BIS	-
	EAC	√
	TUV	-
	SAA	√
	DALI test completed	-
Dimension	Dimension (mm) Length	234
	Dimension (mm) Width	98
	Dimension (mm) Height	40

Output Current & Voltage Range:

Product Dimension:

Outdoor LED Driver Model List:

Model	Max Power	Vout Range	Iout Range	Default Spec.	Dimmable	Efficiency
Model	(W)	(Vdc)	(A)	Default Spec.	Dimmable	Efficiency
LDP-320M041	320W	20~41Vdc	1.00~10.0A	36Vdc 8.9A	Yes	92%
LDP-320M062	320W	20~60Vdc	0.82~8.2A	48Vdc 6.7A	Yes	92%
LDP-320M230-A	320W	120~180Vdc	0.21~2.10A	152Vdc 2.1A	Yes	93%
LDP-320M230-B	320W	170~230Vdc	0.18~1.78A	228Vdc 1.4A	Yes	93%
LDP-320M457	320W	235~457Vdc	0.11~1.10A	457Vdc 0.7A	Yes	93%
LDP-320R041	320W	20~41Vdc	1.00~10.0A	36Vdc 8.9A	No	92%
LDP-320R062	320W	20~60Vdc	0.82~8.2A	48Vdc 6.7A	No	92%
LDP-320R230-A	320W	120~180Vdc	0.21~2.10A	152Vdc 2.1A	No	92%
LDP-320R230-B	320W	170~230Vdc	0.18~1.78A	228Vdc 1.4A	No	93%
LDP-320R457	320W	235~457Vdc	0.11~1.10A	457Vdc 0.7A	No	93%

Application:

LED street / tunnel lighting, industrial lighting, flood lighting, grow lights, stadium lighting, etc.

street lighting led driver

About MOSO:

Constant Current LED DRIVER

outdoor led driver

MOSO has set several distributors in Europe, United States, Latin America, Asia and Australia. All MOSO outdoor led driver provide 5 years global warranty. In case of any failure, customers can get replacement either from MOSO directly or any one of MOSO distributors.

Country	Distributor	Tel	Website
USA	Component Distributors, Inc.	+1 303 357 2732	www.cdiweb.com
Canada	DB Lectro Inc.	+1 888 394 1424	www.dblectro.com
Sweden	Vanpee AB	+46 11 213422	www.vanpee.se
Norway	Vanpee AB	+47 91 87 47 17	www.vanpee.no
Poland	MPL Power Elektro SP. z o.o.	+48 32 44 00 950	www.mplpower.pl
Spain	INELEC, S.A.	+ 34 91 726 35 07	www.inelec.net
Portugal	INELEC, S.A.	+ 34 91 726 35 07	www.inelec.net
Italy	Welt Electronic Spa	+39 055 302 631	www.weltelectronic.it
Russia	Intech Lighting	+7 (812) 370 60 70	www.intech-light.ru
Russia	(Group of Macro companies)	+7 (812) 370 60 70	www.intech-light.ru
Turkey	ISIKLAR LED	+90 216 445 70 03	www.isiklarled.com
Turkey	PEGASUS Elektronik	+90 212 322 71 00	www.pgsel.com
India	LUMENS TECHNOLOGIES PVT LTD.	+91 22 2595 0265	www.lumenstech.in
Southeast Asia	Supreme Components International	+65 6848 1178	www.lightingcompass.com/moso/
Hong Kong	PEGASUS Electronics	+(852) 2153 8686	www.pgsel.com

MOSO always dedicates to providing professional outdoor lighting solutions. Please feel free to contact our sales team if you need any support!
