Intelligent Constant Current Waterproof LED Driver 200W
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300,000pcs/month |
| Supply Ability: | 300,000pcs/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | BIS SAA PSE KC TUV CB CE CCC ENEC UL |
| HS Code: | 8504409999 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou,Hongkong |

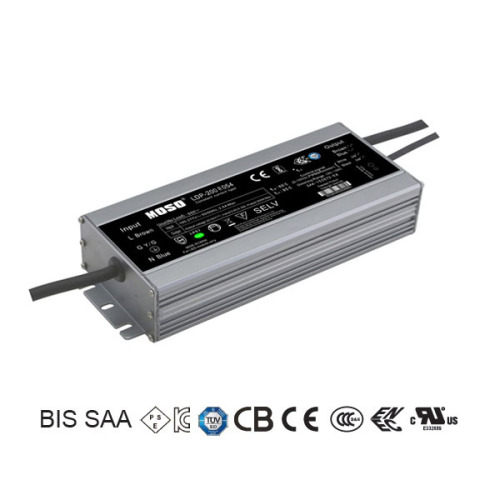

Intelligent Constant Current Waterproof LED Driver
The 200Watt LED driver LDP series is intelligent constant current LED driver. The Aluminum Alloy cover keep excellent heating protection and high IP rate to be as a waterproof LED driver. It is a patent design with IR remote controller program technology, and friendly software to monitor output value and timer step control. It is a brilliant style to built-in program, dimming and 10KV surge functions at same time, which much more reliable for outdoor applications especially for LED public lighting, industrial lighting and landscape lighting, etc.
Product features:
Use MCU control to limit the delivered power, output current configurable, output voltage self-reacting;
No dimming;
Equipped with interactive visual software to customize output setting;
Universal input voltage: (90 ~ 305)Vac;
Soft-switching patented technology, high efficiency up to 93%;
Overall protection: Short circuit / Over temperature / Over voltage;
Surge immunity: DM-5KV, CM-10KV;
IP67, glue potted, suitable for dry / wet / damp locations;
Complied with CCC/CE/CB/ENEC/SAA/BIS/UL safety regulations.
Ambient temperature: -40℃ ~ +60℃.
Technical Parameters:
| Basic Specification | Series | LDP-200R |
| Part No. | LDP-200R054-B | |
| Datasheet Link | Datasheet | |
| Type | Constant power design, in constant current mode | |
| Input Voltage (Vac) | 90 ~ 305 | |
| Output Power (W) | 200 | |
| Min Output Voltage (Vdc) |
40 |
|
| Typical Output Voltage (Vdc) | - | |
| Max Output Voltage (Vdc) |
54 |
|
| Output Current (A) | 0.63~4.54 | |
|
Full-Power Current Range (A)
(Only applicable for Programmable Drivers with Constant Power Design )
|
3.70~4.54 | |
| No Load Voltage Max(V) |
60 |
|
| Vaux Typical Voltage (V) | - | |
| Vaux Max Current (mA) | - | |
| IP | 67 | |
| Power Stages | 2 | |
| Dimming | Timer dimming | |
| Dim-to-Off | - | |
| SCP Mode | Auto Recovery | |
| OTP Mode | Decrease Current | |
| Surge Protection L-L | 5KV | |
| Surge Protection L-GND | 10KV | |
| THD | ≤15% | |
| Power Factor @ 220 Vac | 0.96 | |
| Power Factor @ 277 Vac | - | |
| Power Factor @ 480 Vac | - | |
| Eff. @ 220 Vac | 90.0% | |
| Eff. @ 277 Vac | - | |
| Eff. @ 480 Vac | - | |
| Application | Installation Type (Independent) | Yes |
| Installation Type (Built in luminaire) | Yes | |
| Used for Dry & Damp Location | Yes | |
| Used for Wet, Dry & Damp Location | Yes | |
| Class I Luminaire | Yes | |
| Class II Lumianire | - | |
| TYPE TL | √ | |
| TYPE HL |
|
|
| Reliability | Calculated MTBF (hours) | 200,000 |
| Lifetime (hours) | 50,000 | |
| Operating Temp min ( °C ) | -40 | |
| Operating Ambient max ( °C ) | 60 | |
| Global Certification | UL | √ |
| UL Listed |
|
|
| ClassP |
|
|
| CE | √ | |
| ENEC | √ | |
| CCC | √ | |
| PSE | - | |
| TUV | √ | |
| KC | √ | |
| KS | √ | |
| CB | √ | |
| BIS | √ | |
| EAC | √ | |
| TUV | - | |
| SAA | √ | |
| DALI test completed | - | |
| Dimension | Dimension (mm) Length | 207 |
| Dimension (mm) Width | 80 | |
| Dimension (mm) Height | 40 |
Output Current & Voltage Range:
Product Dimension:
200W Outdoor LED Driver Model List:
|
Model |
Max Power |
Vout Range |
Iout Range |
Full Power Iout Range |
Dimmable |
|
|
(W) |
(Vdc) |
(A) |
(A) |
|||
|
LDP-200M054-A |
200W |
20~44 |
0.63~6.30 |
4.54~6.30 |
0-10V/PWM/Timer |
90.0% |
|
LDP-200M054-B |
200W |
40~54 |
0.63~4.54 |
3.70~4.54 |
0-10V/PWM/Timer |
90.0% |
|
LDP-200M120-A |
200W |
60~90 |
0.28~2.80 |
2.22~2.80 |
0-10V/PWM/Timer |
91.0% |
|
LDP-200M120-B |
200W |
80~120 |
0.28~2.22 |
1.67~2.22 |
0-10V/PWM/Timer |
91.0% |
|
LDP-200M305-A |
200W |
120~220 |
0.14~1.40 |
0.91~1.40 |
0-10V/PWM/Timer |
91.0% |
|
LDP-200M305-B |
200W |
200~305 |
0.14~0.91 |
0.65~0.91 |
0-10V/PWM/Timer |
91.0% |
|
LDP-200M445 |
200W |
230~445 |
0.07~0.70 |
0.45~0.70 |
0-10V/PWM/Timer |
91.0% |
|
LDP-200R054-A |
200W |
20~44 |
0.63~6.30 |
4.54~6.30 |
Timer |
90.0% |
|
LDP-200R054-B |
200W |
40~54 |
0.63~4.54 |
3.70~4.54 |
Timer |
90.0% |
|
LDP-200R120-A |
200W |
60~90 |
0.28~2.80 |
2.22~2.80 |
Timer |
91.0% |
|
LDP-200R120-B |
200W |
80~120 |
0.28~2.22 |
1.67~2.22 |
Timer |
91.0% |
|
LDP-200R305-A |
200W |
120~220 |
0.14~1.40 |
0.91~1.40 |
Timer |
91.0% |
|
LDP-200R305-B |
200W |
200~305 |
0.14~0.91 |
0.65~0.91 |
Timer |
91.0% |
|
LDP-200R445 |
200W |
230~445 |
0.07~0.70 |
0.45~0.70 |
Timer |
91.0% |
Application:
LED street / tunnel lighting, industrial lighting, flood lighting, grow lights, stadium lighting, etc.
About MOSO:
MOSO has set several distributors in Europe, United States, Latin America, Asia and Australia. All MOSO intelligent constant current waterproof LED driver provide 5 years global warranty. In case of any failure, customers can get replacement either from MOSO directly or any one of MOSO distributors.
| Country | Distributor | Tel | Website |
| USA | Component Distributors, Inc. | +1 303 357 2732 | www.cdiweb.com |
| Canada | DB Lectro Inc. | +1 888 394 1424 | www.dblectro.com |
| Sweden | Vanpee AB | +46 11 213422 | www.vanpee.se |
| Norway | Vanpee AB | +47 91 87 47 17 | www.vanpee.no |
| Poland | MPL Power Elektro SP. z o.o. | +48 32 44 00 950 | www.mplpower.pl |
| Spain | INELEC, S.A. | + 34 91 726 35 07 | www.inelec.net |
| Portugal | |||
| Italy | Welt Electronic Spa | +39 055 302 631 | www.weltelectronic.it |
| Russia | Intech Lighting | +7 (812) 370 60 70 | www.intech-light.ru |
| (Group of Macro companies) | |||
| Turkey | ISIKLAR LED | +90 216 445 70 03 | www.isiklarled.com |
| Turkey | PEGASUS Elektronik | +90 212 322 71 00 | www.pgsel.com |
| India | LUMENS TECHNOLOGIES PVT LTD. | +91 22 2595 0265 | www.lumenstech.in |
| Southeast Asia | Supreme Components International | +65 6848 1178 | www.lightingcompass.com/moso/ |
| Hong Kong | PEGASUS Electronics | +(852) 2153 8686 | www.pgsel.com |
MOSO always dedicates to providing professional outdoor lighting solutions. Please feel free to contact our sales team if you need any support!
