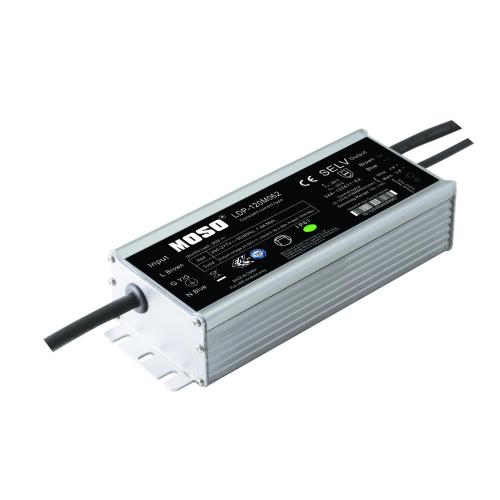

Low Flicker Constant Current LED Driver

Waterproof 120W Outdoor Driver

Monitored by an infrared based programming device, the fully programmed constant current led driver offer all dimming options and a wide range of output current in a single outdoor led driver, which deliver maximum flexibility with customized operating settings and intelligent control options for OEMs, as one outdoor led driver can be programmed for many different luminaire designs.the ourput power is 120W. This product creatively integrated limited power, 0-10V/PWM dimming.

Product features:

Use MCU control to limit the delivered power, output current configurable, output voltage self-reacting;
Built-in 3-in-1 dimming and auto-react: 0-10Vdc, PWM signal, timming control;
Signal amplitude can be 5V or 10V;
Equipped with interactive visual software to customize output setting;
Universal input voltage: (90 ~ 305)Vac;

Soft-switching patented technology, high efficiency up to 93%;

Overall protection: Short circuit / Over temperature / Over voltage;
Surge immunity: DM-5KV, CM-10KV;
IP67, glue potted, suitable for dry / wet / damp locations;
Complied with CCC/CE/CB/ENEC/SAA/BIS/UL safety regulations.
Ambient temperature: -40℃ ~ +60℃.

Technical Parameters:

Application:

LED street / tunnel lighting, industrial lighting, flood lighting, grow lights, stadium lighting, etc.

About MOSO:

MOSO has set several distributors in Europe, United States, Latin America, Asia and Australia. All MOSO outdoor led driver provide 5 years global warranty. In case of any failure, customers can get replacement either from MOSO directly or any one of MOSO distributors.

MOSO always dedicates to providing professional outdoor lighting solutions. Please feel free to contact our sales team if you need any support!
