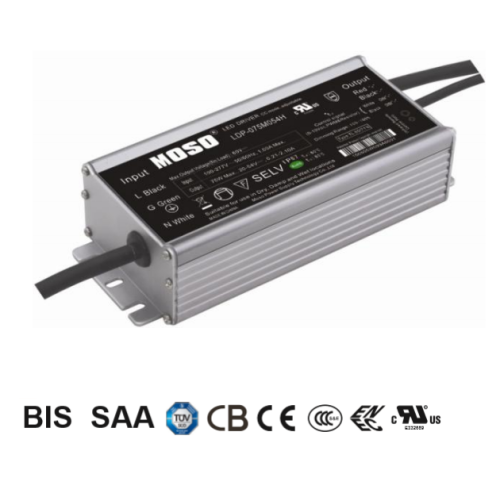

75W Constant Curent Programmable LED Power Supply
The LDP-075W series is 75W outdoor programmable LED driver that operates in constant current model.
Monitored by an infrared based programming device, the fully programmed constant current led driver offer all dimming options and a wide range of output current in a single outdoor led driver which deliver maximum flexibility with customized operating settings and intelligent control options for OEMs, as one outdoor led driver can be programmed for many different luminaire designs.
Product Features:
Use MCU control to limit the delivered power, output current configurable, output
voltage self-reacting;
Built-in 3-in-1 dimming and auto-react:0-10Vdc, PWM signal, timer control;
Signal amplitude can be 5V or 10V;
Equipped with interactive visual software to customize output setting;
Universal input voltage: (90 ~ 305)Vac;
Soft-switching patented technology, high efficiency up to 93%;
Overall protection: Short circuit / Over temperature / Over voltage;
Surge immunity: DM-5KV, CM-10KV;
IP67, glue potted, suitable for dry / wet / damp locations;
Complied with CCC/CE/CB/ENEC/SAA/BIS/UL safety regulations.
Ambient temperature: -40℃ ~ +60℃.
Technical Parameters:
|
Basic Specification |
Series |
LDP-75M |
|
Part No. |
LDP-075M054 |
|
|
Datasheet Link |
||
|
Type |
Constant Power Design in Constant Current Mode |
|
|
Input Voltage (Vac) |
90 ~ 305 |
|
|
Output Power (W) |
75 |
|
|
Min Output Voltage (Vdc) |
20 |
|
|
Typical Output Voltage (Vdc) |
- |
|
|
Max Output Voltage (Vdc) |
54 |
|
|
Output Current (A) |
0.21~2.10 |
|
|
Full-Power Current Range (A) (Only applicable for Programmable Drivers with Constant Power Design ) |
1.40~2.10 |
|
|
No Load Voltage Max(V) |
60 |
|
|
Vaux Typical Voltage (V) |
- |
|
|
Vaux Max Current (mA) |
- |
|
|
IP |
67 |
|
|
Power Stages |
2 |
|
|
Dimming |
0-10V/PWM/Resistor/Timing control |
|
|
Dim-to-Off |
- |
|
|
SCP Mode |
Hiccup |
|
|
OTP Mode |
Decrease Current |
|
|
Surge Protection L-L |
5KV |
|
|
Surge Protection L-GND |
10KV |
|
|
THD |
≤15% |
|
|
Power Factor @ 220 Vac |
0.96 |
|
|
Power Factor @ 277 Vac |
- |
|
|
Power Factor @ 480 Vac |
- |
|
|
Eff. @ 220 Vac |
87.0% |
|
|
Eff. @ 277 Vac |
- |
|
|
Eff. @ 480 Vac |
- |
|
|
Application |
Installation Type (Independent) |
Y |
|
Installation Type (Built in luminaire) |
Y |
|
|
Used for Dry & Damp Location |
Y |
|
|
Used for Wet, Dry & Damp Location |
Y |
|
|
Class I Luminaire |
Y |
|
|
Class II Lumianire |
- |
|
|
TYPE TL |
√ |
|
|
TYPE HL |
- |
|
|
Reliability |
Calculated MTBF (hours) |
200,000 |
|
Lifetime (hours) |
50,000 |
|
|
Operating Temp min ( °C ) |
-40 |
|
|
Operating Ambient max ( °C ) |
60 |
|
|
Global Certification |
UL |
√ |
|
UL Listed |
|
|
|
ClassP |
|
|
|
CE |
√ |
|
|
ENEC |
√ |
|
|
CCC |
√ |
|
|
PSE |
√ |
|
|
TUV |
√ |
|
|
KC |
√ |
|
|
KS |
√ |
|
|
CB |
√ |
|
|
BIS |
√ |
|
|
EAC |
√ |
|
|
TUV |
- |
|
|
SAA |
√ |
|
|
DALI test completed |
- |
|
|
Dimension |
Dimension (mm) Length |
164 |
|
Dimension (mm) Width |
68 |
|
|
Dimension (mm) Height |
39 |
Output Current & Voltage Range:
Product Dimension:
LDP 75W Programmer LED Drivers Model List:
|
Part No. |
Vin (Vac) |
Pout (W) |
Vout Min |
Vout Max |
Iout (A) |
Full-Power Current Range (A) |
IP |
Dimming |
Eff. @ 220 Vac |
|
LDP-075R054 |
90 ~ 305 |
75 |
20 |
54 |
1.40~2.10 |
1.40~2.10 |
67 |
Timer dimming |
87.0% |
|
LDP-075R62 |
90 ~ 305 |
75 |
35 |
62 |
1.20~1.67 |
1.20~1.67 |
67 |
Timer dimming |
87.0% |
|
LDP-075R141 |
90 ~ 305 |
75 |
60 |
141 |
0.53~1.10 |
0.53~1.10 |
67 |
Timer dimming |
88.0% |
|
LDP-075R270 |
90 ~ 305 |
75 |
120 |
270 |
0.28~0.53 |
0.28~0.53 |
67 |
Timer dimming |
88.0% |
|
LDP-075M054 |
90 ~ 305 |
75 |
20 |
54 |
1.40~2.10 |
1.40~2.10 |
67 |
0-10V/PWM/Resistor/Timing control |
87.0% |
|
LDP-075M62 |
90 ~ 305 |
75 |
35 |
62 |
1.20~1.67 |
1.20~1.67 |
67 |
0-10V/PWM/Resistor/Timing control |
87.0% |
|
LDP-075M141 |
90 ~ 305 |
75 |
60 |
141 |
0.53~1.10 |
0.53~1.10 |
67 |
0-10V/PWM/Resistor/Timing control |
88.0% |
|
LDP-075M270 |
90 ~ 305 |
75 |
120 |
270 |
0.28~0.53 |
0.28~0.53 |
67 |
0-10V/PWM/Resistor/Timing control |
88.0% |
Applications:
About MOSO:
MOSO MOSO has set several distributors in Europe, United States, Latin America, Asia and Australia. All MOSO outdoor led driver provide 5 years global warranty. In case of any failure, customers can get replacement either from MOSO directly or any one of MOSO distributors.
|
