120W High Power LED Driver

Programmable Round Lighting LED Driver 120W

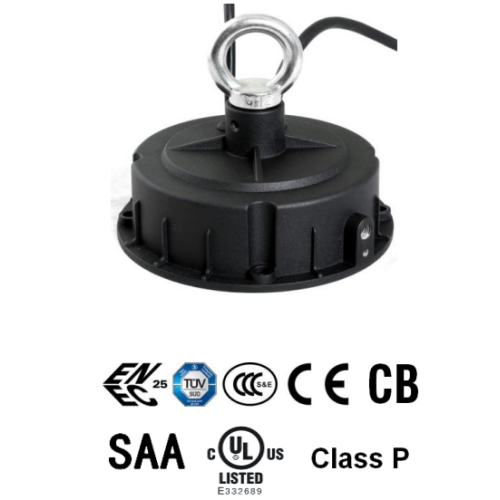

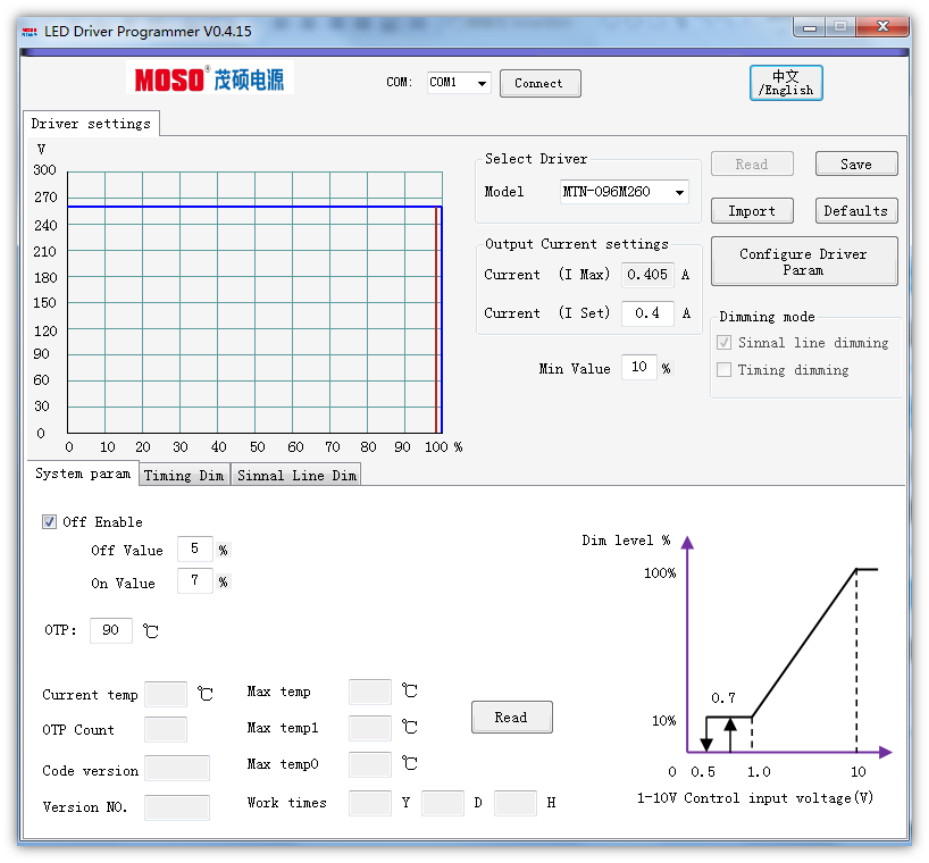

MTP-120M040 is a 120W Chassis Power Supply, LED Driver Current, Open Frame Power Supply which is particularly developed for industrial lighting area. Clients can adjust the output parameters through internal potentiometer or programmed by dimming wire. And the new designing off-line programmable enables all LED High Bay Lighting Driver 120W programmed via a dedicated software and programming tool. Besides, the circular integrated structure is seamlessly matched to industrial lighting fixtures and performs optimal heat dissipation to meet the industrial lighting demand. The Round Programmable Driver has an innovative function which is called " Lifetime Control", it enables the user to define the lifetime of LED fixtures. And he can set a auto-dimming schedule for midnight in the software, to dim the fixtures to be less power in mid-night, to save more energy and extend life span.

Product features:

Universal input voltage: 90~305Vac;

Constant power design, output current configurable, output voltage self-reacting;;

(M types) Offline programming through dimming wire,

(V types) Setting current with a built-in variable resistor;

Built-in 2-in-1 dimming mode: 0-10Vdc, PWM dimming, Dim-to-off;

Soft-switching patented technology, high efficiency up to 92%;

Overall protection: Short circuit / Over temperature / Over voltage

Surge immunity: DM-4KV, CM-6KV;

IP65 design for indoor and outdoor applications;

Complied with CCC/CE/CB/ENEC/SAA/UL/Class P safety regulations;

Ambient temperature: -40℃ ~ +60℃;

5 years warranty.

                                          MECHANICAL OUTLINE

Application:

Industrial lighting, stadium lighting, etc.

About MOSO:

MOSO has set several distributors in Europe, United States, Latin America, Asia and Australia. All MOSO led high bay driver provide 5 years global warranty. In case of any failure, customers can get replacement either from MOSO directly or any one of MOSO distributors.

MOSO always dedicates to providing professional outdoor lighting solutions. Please feel free to contact our sales team if you need any support!

MOSO Power Supply Technology Co., Ltd
