Non-Dimmable Train Tunnal Light LED Driver
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CIF, FCA
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 35 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shekou, Yantian, Chiwan
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300,000pcs/month |
| Supply Ability: | 300,000pcs/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF,FCA |
| Certificate: | BIS/TUV/CB/CE/ENEC/CCC/UR |
| HS Code: | 8504409999 |
| Transportation: | Ocean,Land,Air |
| Port: | Shekou,Yantian,Chiwan |

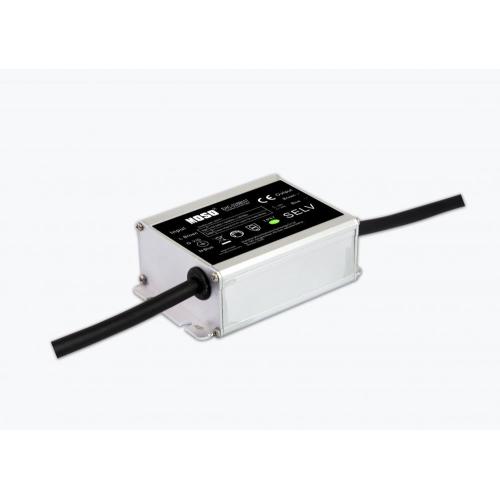

Non Dimmable Outdoor LED Power
The EHC-026B074, Non-Dimmable LED driver that operates from 108- 305 Vac input LED Driver. It is Constant Current LED Driver. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.
Product features:
Use MCU control to limit the delivered power, output current configurable, output voltage self-reacting;
Equipped with interactive visual software to customize output setting;
Universal input voltage: (108 ~ 305)Vac;
Soft-switching patented technology, high efficiency up to 87%;
Overall protection: Short circuit / Over temperature / Over voltage;
Surge immunity: DM-4KV, CM-6KV;
IP67, glue potted, suitable for dry / wet / damp locations;
Complied with CCC/CE/CB/ENEC/SAA/BIS/UL safety regulations.
Ambient temperature: -40℃ ~ +60℃.
Technical Parameters:
| Basic Specification | Series | EHC-026B |
| Part No. | EHC-26B052 | |
| Datasheet Link | Datasheet | |
| Type | CC/CP | |
| Vin (Vac) | 108~305 | |
| Pout (W) | 26 | |
| Vout Min |
37 |
|
| Vout Typ | - | |
| Vout Max |
54 |
|
| Iout (A) |
0.50 |
|
|
Full-Power Current Range (A)
(Only applicable for Programmabel Drivers with Constant Power Design )
|
0.50 | |
| No Load Voltage Max(V) |
100 |
|
| Vaux Typical Voltage (V) | - | |
| Vaux Max Current (mA) | - | |
| IP | 67 | |
| Power Stages |
1 |
|
| Dimming |
Non Dimming |
|
| Dim-to-Off | - | |
| SCP Mode | Auto Recovery | |
| OTP Mode | Decrease Current | |
| Surge Protection L-L | 4KV | |
| Surge Protection L-GND | 6KV | |
| THD | ≤10% | |
| Power Factor @ 220 Vac | 0.97 | |
| Power Factor @ 277 Vac | - | |
| Power Factor @ 480 Vac | - | |
| Eff. @ 220 Vac | 87.0% | |
| Eff. @ 277 Vac | - | |
| Eff. @ 480 Vac | - | |
| Application | Installation Type (Independent) | Yes |
| Installation Type (Built in luminaire) | Yes | |
| Used for Dry & Damp Location | Yes | |
| Used for Wet, Dry & Damp Location | Yes | |
| Class I Luminaire | Yes | |
| Class II Lumianire | - | |
| TYPE TL | √ | |
| TYPE HL | - | |
| Reliability | Calculated MTBF (hours) | 200,000 |
| Lifetime (hours) | 50,000 | |
| Operating Temp min ( °C ) | -40 | |
| Operating Ambient max ( °C ) | 60 | |
| Global Certification | UL |
- |
| UL Listed |
|
|
| ClassP |
|
|
| CE | √ | |
| ENEC | - | |
| CCC | √ | |
| PSE | - | |
| TUV | √ | |
| KC | - | |
| KS | - | |
| CB | √ | |
| BIS | √ | |
| EAC | - | |
| TUV | - | |
| SAA | - | |
| DALI test completed | - | |
| Dimension | Dimension (mm) Length | 96 |
| Dimension (mm) Width | 64 | |
| Dimension (mm) Height | 33 |
Output Current & Voltage Range:
Product Dimension:
105W Outdoor LED Driver Model List:
|
Model |
Max DC Power |
Vout Range |
Iout Range |
Dimmable |
Efficiency |
|
(W) |
(Vdc) |
(A) |
|||
|
EHC-026B074 |
26W |
37~74Vdc |
0.35A |
Non |
87% |
|
EHC-026B052 |
26W |
37~52dc |
0.5 A |
Non |
87% |
|
EHC-026B043 |
26W |
25~43Vdc |
0.6A |
Non |
87% |
Application:
LED street / tunnel lighting, industrial lighting, flood lighting, street lights ,Landscape lighting, etc.
About MOSO:
MOSO has set several distributors in Europe, United States, Latin America, Asia and Australia. All MOSO outdoor led driver provide 5 years global warranty. In case of any failure, customers can get replacement either from MOSO directly or any one of MOSO distributors.
| Country | Distributor | Tel | Website |
| USA | Component Distributors, Inc. | +1 303 357 2732 | www.cdiweb.com |
| Canada | DB Lectro Inc. | +1 888 394 1424 | www.dblectro.com |
| Sweden | Vanpee AB | +46 11 213422 | www.vanpee.se |
| Norway | Vanpee AB | +47 91 87 47 17 | www.vanpee.no |
| Poland | MPL Power Elektro SP. z o.o. | +48 32 44 00 950 | www.mplpower.pl |
| Spain | INELEC, S.A. | + 34 91 726 35 07 | www.inelec.net |
| Portugal | |||
| Italy | Welt Electronic Spa | +39 055 302 631 | www.weltelectronic.it |
| Russia | Intech Lighting | +7 (812) 370 60 70 | www.intech-light.ru |
| (Group of Macro companies) | |||
| Turkey | ISIKLAR LED | +90 216 445 70 03 | www.isiklarled.com |
| Turkey | PEGASUS Elektronik | +90 212 322 71 00 | www.pgsel.com |
| India | LUMENS TECHNOLOGIES PVT LTD. | +91 22 2595 0265 | www.lumenstech.in |
| Southeast Asia | Supreme Components International | +65 6848 1178 | www.lightingcompass.com/moso/ |
| Hong Kong | PEGASUS Electronics | +(852) 2153 8686 | www.pgsel.com |
MOSO always dedicates to providing professional outdoor lighting solutions. Please feel free to contact our sales team if you need any support!
