Programmable Tunnel Light LED Driver

Non Dimmable Outdoor LED Power

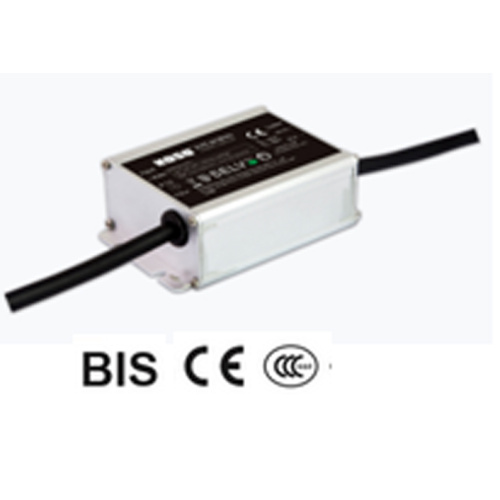

The EHC-026B074, Non-Dimmable LED driver that operates from 108- 305 Vac input  LED Driver. It is Constant Current LED Driver. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

Product features:

Use MCU control to limit the delivered power, output current configurable, output voltage self-reacting;
Equipped with interactive visual software to customize output setting;
Universal input voltage: (108 ~ 305)Vac;

Soft-switching patented technology, high efficiency up to 87%;

Overall protection: Short circuit / Over temperature / Over voltage;
Surge immunity: DM-4KV, CM-6KV;
IP67, glue potted, suitable for dry / wet / damp locations;
Complied with CCC/CE/CB/ENEC/SAA/BIS/UL safety regulations.
Ambient temperature: -40℃ ~ +60℃.

Technical Parameters:

Output Current & Voltage Range:

Product Dimension:

105W Outdoor LED Driver Model List:

Application:

LED street / tunnel lighting, industrial lighting, flood lighting, street lights ,Landscape lighting, etc.

About MOSO:

MOSO has set several distributors in Europe, United States, Latin America, Asia and Australia. All MOSO outdoor led driver provide 5 years global warranty. In case of any failure, customers can get replacement either from MOSO directly or any one of MOSO distributors.

MOSO always dedicates to providing professional outdoor lighting solutions. Please feel free to contact our sales team if you need any support!
