Dimmable Outdoor LED Power

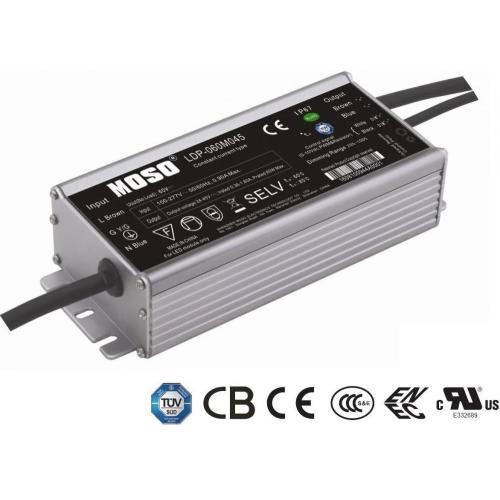

The LDP-060M045, Isolated LED driver that operates from 90- 305 Vac input with 3 in 1 dimmable LED Driver. It is flickering free Constant Current LED Driver. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

software connecting

software interface

Product features:

Use MCU control to limit the delivered power, output current configurable, output voltage self-reacting;
Built-in 3-in-1 dimming and auto-react: 0-10Vdc, PWM signal, timming control;
Signal amplitude can be 5V or 10V;
Equipped with interactive visual software to customize output setting;
Universal input voltage: (90 ~ 305)Vac;
Soft-switching patented technology, high efficiency up to 93%;
Overall protection: Short circuit / Over temperature / Over voltage;
Surge immunity: DM-5KV, CM-10KV;
IP67, glue potted, suitable for dry / wet / damp locations;
Complied with CCC/CE/CB/ENEC/SAA/BIS/UL safety regulations.
Ambient temperature: -40℃ ~ +60℃.

Technical Parameters:

Programmable Driver Output Current & Voltage Curve:

Dimmable Driver Output Parameter-1

Product Dimension:

60W Driver Dimension

60W Programmable LED Driver models:

Model	Max Output Power	Vout Range	Iout Range	Default Spec.	Dimmable	Efficiency
Model	(W)	(VDC)	(A)	Default Spec.	Dimmable	Efficiency
LDP-060M045	60W	24-45V	0.36-1.8A	36V 1.67A	Yes	87%
LDP-060M080	60W	45-80V	0.21-1.05A	57V 1.05A	Yes	87%
LDP-060M180	60W	80-180V	0.14-0.7A	86V 0.7A	Yes	87%
LDP-060R045	60W	24-45V	0.36-1.8A	36V 1.67A	No	87%
LDP-060R080	60W	45-80V	0.21-1.05A	57V 1.05A	No	87%
LDP-060R180	60W	80-180V	0.14-0.7A	86V 0.7A	No	87%

Outdoor Application:

It is used for LED Street Light, Tunnel Light, Flood Light, Industrial Light, Grow Light, etc.
