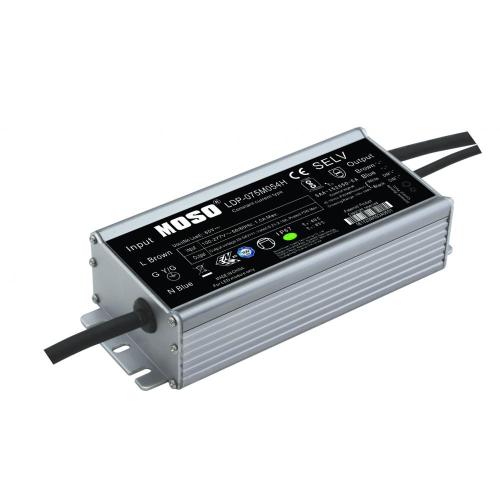

75W fully programmed LED Driver

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info

Model No.: LDP-075M270H

Certification: CCC, ISO9001, ROSH, UL, SGS, CE, TUV

Power Supply Mode: Constant Current Source

Additional Info

Transportation: Ocean,Land,Air

Port: Shenzhen

Product Description

Basic Info

Brand:MOSO Usage:Outdoor lighting applications

Model No:LDP-075M270H Driving Method:LED Constant Current

Output Type:Single Power Supply Mode:Constant Current Source

Certification:CCC,CE,TUV,ISO9001,RoHS,SGS Surge Immunity:L-L 5KV;L-G 10KV

IP Rating:IP67 Protection:OVP,SCP,OTP

Warranty:5 Years Dimming Function:0-10V,PWM,Resistor,Timming Control

Additional Info

Packaging:10pcs/CTN Productivity:330,000 pcs/month

Place of Origin:China Transportation:Oscean,Land,Air

Certification:CE,CB,TUV,ENEC,UL,BIS,SAA,CCC.etc HS Code:8504409999

Production Description

LDP 75W series is configurable constant current programmable LED driver with high reliability. The rated models are

LDP-075M032 LDP-075R032 LDP-075M054 LDP-075R054 LDP-075M062,

LDP-075R062 LDP-075M141 LDP-075R141 LDP-075M270 LDP-075R270 .

LDP 75W Monitored by an infrared based programming device,one driver can be programmed for many differentluminaire designs.

The fully programmed power supply offer all dimming options and a wide range of output current in a single driver, with high performance and efficiency.

Programming Operation Guide

Products Features:

features & applications

Technical Parameters:

Basic Specification	Part No.	LDP-075M270H
	Product Series	LDP-075M
	Output Type	Constant Power Design in Constant Current Mode
	Vin (Vac)	90 ~ 305
	Pout (W)	75
	Vout Min	120
	Vout Typ	-
	Vout Max	270
	Iout (A)	0.05~0.53
	Full-Power Current Range (A) (Only applicable for Programmabel Drivers with Constant Power Design )	0.28~0.53
	No Load Voltage Max(V)	300
	Vaux Typical Voltage (V)	-
	Vaux Max Current (mA)	-
	IP	67
	Power Stages	2
	Dimming	0-10V/PWM/Resistor/Timing control
	Dim-to-Off	-
	SCP Mode	Hiccup
	OTP Mode	Decrease Current
	Power Factor @ 220 Vac	0.96
	Power Factor @ 277 Vac	-
	Power Factor @ 480 Vac	-
	Eff. @ 220 Vac	88.0%
	Eff. @ 277 Vac	-
	Eff. @ 480 Vac	-
Application	Installation Type (Independent)	Y
	Installation Type (Built in luminaire)	Y
	Used for Dry & Damp Location	Y
	Used for Wet, Dry & Damp Location	Y
	Class I Luminaire	Y
	Class II Lumianire	-
	TYPE TL	√
	TYPE HL	-
Reliability	Calculated MTBF (hours)	200,000
	Lifetime (hours)	50,000
	Operating Temp min ( °C )	-40
	Operating Ambient max ( °C )	60
Global Certification	UL	√
	UL Listed
	ClassP
	CE	√
	ENEC	√
	CCC	√
	PSE	√
	TUV	√
	KC	-
	KS	-
	CB	√
	BIS	√
	EAC	√
	TUV	-
	SAA	√
	DALI test completed	-
Dimension	Dimension (mm) Length	164
	Dimension (mm) Width	68
	Dimension (mm) Height	39
