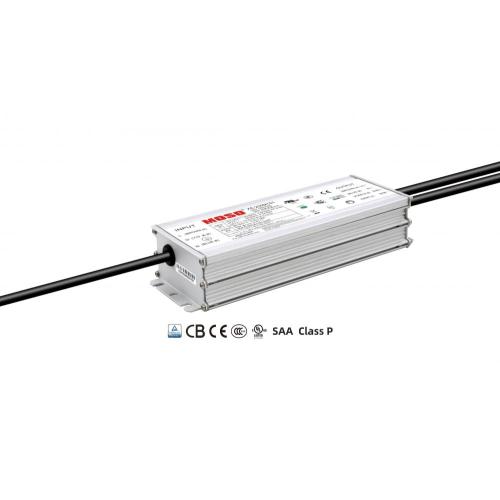

3-in-1 Dimming 200W Universal Input LED Driver

 High Efficiency Road Lighting LED Driver 200W

The X6-200W series is 200W outdoor offline programmable LED driver that operates in Surge immunity: DM-5KV, CM-10KV and High efficiency: Up to 93% with high PF value and universal input like LED Driver 0-20W, LED Driver 0.3a and Led Driver 0.5-12W. There are many breakthroughs and innovations in the function and performance of X6 products. There are four functions for the industry's initiative: the first is off-line programmable, which can reset product specifications anytime and anywhere in the power-off state; second is black box function, which can faithfully record the stress data of core components and save them to form a log, Even if the power supply fails, it can be exported at any time and to achieve self-diagnosis of product failure; The third is the OTP (over-temperature point setting). By modifying the settings of the OTP (over-temperature protection point), the product life can be extended to 7 to 10 years to meet the market demand for ultra-long life power supplies; Fourth is one-button programming, through independent offline programmer to one-button programming which efficient Simplicity and meantime breaks away from the requirements of professional venues, so that the definition of product specifications becomes as "core" desires, anytime and anywhere.

Product features:

• Universal input voltage / Full range: 90~305Vac; Constant power design, output current programming adjustable;
• (M types) offline programmable,( 57274914, 57274902, 57274881, 57272514, 57267923,V types) output current adjustable by built-in potentiometer;
• 3-in-1 dimmable: 0~10Vdc, PWM, Timer dimming. Dim-to-off;
• Constant lumen output
• Output and Dimming Signal Isolating
• Surge protection: 5KV line-line, 10KV line-earth;
• Protections: SCP, OVP, OTP;
• IP67 design for indoor and outdoor applications;
• Suitable for dry / damp / wet locations;
• 7-10 years warranty. Application:
• Suitable for LED roadway lighting, plant lighting, industrial lighting, landscape lighting, etc.

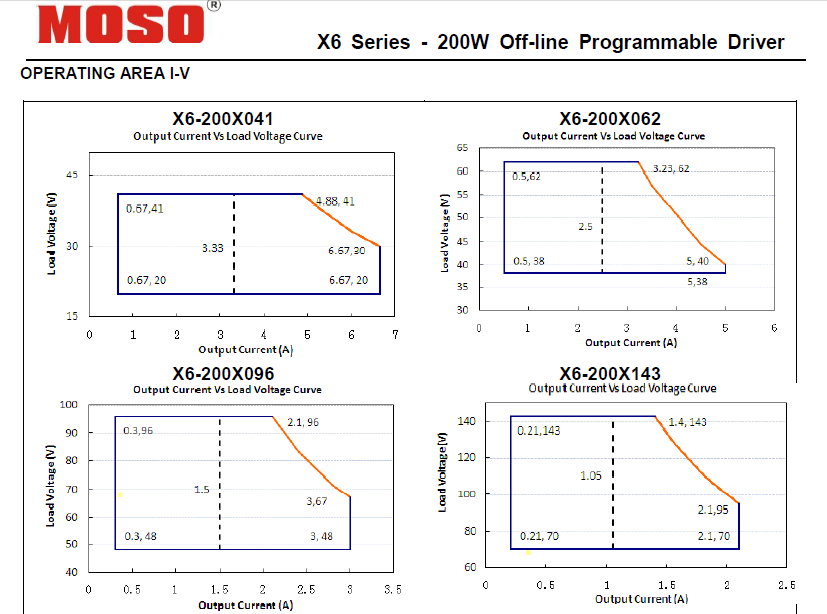

Technical Parameters:

Application:

LED street / tunnel lighting, industrial lighting, flood lighting, grow lights, stadium lighting, etc.

About MOSO:

MOSO has set several distributors in Europe, United States, Latin America, Asia and Australia. All MOSO outdoor led driver provide 5 years global warranty. In case of any failure, customers can get replacement either from MOSO directly or any one of MOSO distributors.

MOSO always dedicates to providing professional outdoor lighting solutions. Please feel free to contact our sales team if you need any support!
