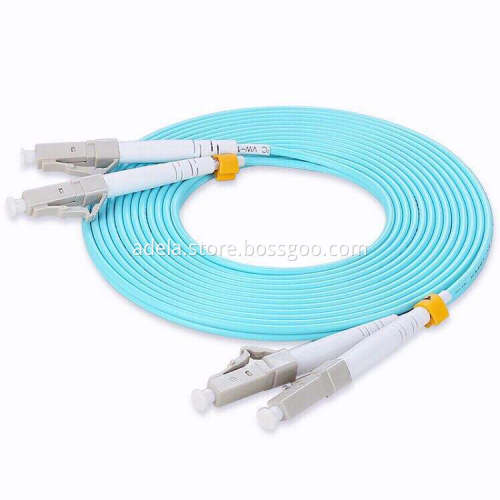

LC-LC Multimode OM3 duplex patch cable
Your message must be between 20 to 2000 characters
Contact NowThe LC-LC duplex 50/125 OM3 multimode fiber optic cable is suitable for 10Gigabit, 25GBase-SR and 40GBASE-Bidi connection for data center, cloud storage networks . The LC-LC duplex OM3 patch cables are normally insert the 10G/25G SR or 40G Bidi SR optical transceiver directly , so we must guarantee clean endsurface , low instersion loss and good return loss . We provide Riser and Plenum jacket cable to USA customers and LSZH jacket to EU customers .
Product Specifications
|
Connector Type |
LC to LC |
Jacket OD |
2.0mm |
|
Fiber Type |
OM3 50/125μm |
Jacket Color |
Aqua |
|
Polish Type |
UPC to UPC |
Wavelength |
850/1300nm |
|
Fiber Count |
Duplex |
Jacket Material |
OFNR/OFNP/LSZH |
|
Insertion loss |
≤0.2dB |
Return loss |
≥35dB |
|
Minimum Bend Radius |
15mm |
Fiber Grade |
G.651 |
|
Polarity |
A(Tx) to B(Rx) |
Operating temperature |
-20~70°C |
