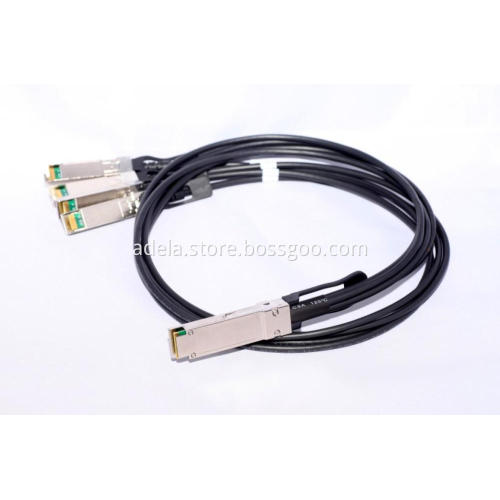

40G QSFP+ to 4SFP+ DAC direct attach cable
Your message must be between 20 to 2000 characters
Contact Now40G QSFP+ Direct Attach Cables are compliant with the SFF-8436 specifications. SFP+ Direct Attach Cables are compliant with the SFF-8431, SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length up to 7m.
Features
• Compliant with SFF- 8436, SFF-8431, SFF-8432 and SFF-8472
• Up to 10. 3125Gbps data rate per channel
• Up to 7m transmission
• Operating temperature: 0~70℃
• Single 3.3V power supply
• RoHS compliant
Benefits
• Cost-effective copper solution
• Lowest total system power solution
• Lowest total system EMI solution
• Optimized design for Signal Integrity
Applications
• 40G Ethernet
General Product Characteristics
|
Q/4SFP+ DAC Specifications |
|
|
Number of Lanes |
Tx & Rx |
|
Channel Data Rate |
10.3125 Gbps |
|
Operating Temperature |
0 to + 70°C |
|
Storage Temperature |
-40 to + 85°C |
|
Supply Voltage |
3.3 V nominal |
|
Electrical Interface |
38 pins edge connector(QSFP+) 20 pins edge connector(SFP+)
|
|
Management Interface |
Serial, I2C |
High Speed Characteristics
|
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Notes |
|
Differential Impedance |
Zd |
90 |
100 |
110 |
Ω |
|
|
Differential Input Return Loss |
SDDXX |
<-12+2* SQRT (f) with f in GHz |
dB |
0.01~4.1GHz |
||
|
<-6.3+13* Log10/(f/5.5) with f in GHz |
dB |
4.1~11.1GHz |
||||
|
Common Mode Output Return Loss |
SCCXX |
< -7+1.6*f with f in GHz |
dB |
0.01~2.5GHz |
||
|
|
|
-3 |
dB |
2.5~11.1GHz |
||
|
Difference Waveform Distortion Penalty |
dWDPc |
|
|
6.75 |
dB |
|
|
VMA Loss |
L |
|
|
4.4 |
dB |
|
|
VMA Loss to Crosstalk Ratio |
VCR |
32.5 |
|
|
dB |
|
