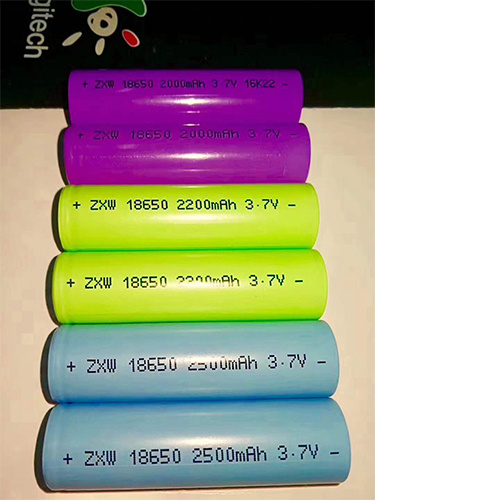

18650 Lithium Battery Cell 2200mAh For Kickscooter

18650 Lithium Battery Cell  2200mAh For Kickscooter

2200mAh Li-ion Battery has much more excellent capacity than the 2000 mAh,

which is also the main basic units of general electric scooter or Kikscooter;

The 2200mAh capacity is the real capacity rather than so called 3400mAh in the markets;

This 18650 Li-ion battery cell is rechargeable li-ion battery cell with standard output voltage 3.7V

and  charging voltage 4.2V.

2.Specification

Ratedcapacity:
Rated capacity: Cap=2000mAh.Under 25±5℃, It means the capacity value of being discharged by 5-hours ratetoendvoltage 3.0V,whichis signedCap,theunitis mAh.
Standardchargemethod:
Under 25±5℃, it can be charged to 4.2V with constant current of 0.5C, and then, charged continuously withconstantvoltage of4.2Vuntilthechargedcurrentis0.01C.
Standarddischargemethod:
Under25±5℃,it canbedischargedtothevoltage of3.0Vwithconstantcurrentof0.5C.
Description and model:
Description:Cylindrical Li-ion rechargeable cell
Model:18650C-2000mAh
Normalvoltage: 3.7V
Chargingvoltage: 4.2±0.05V
Dischargeendingvoltage: 3.0±0.05V
Standard charging current: 0.5C(1000mA)
Standard discharge current : 0.5C(1000mA)
Max charge current: 1.0C
Maxdischargecurrent: 3C
Max recommended charge and discharge cell body temperature: Charge:45℃ Discharge: 60℃
Storage temperature and time : 1year :25℃;  25℃ / 3months :45℃;
Internal resistance: ≤30mΩ(ACImpedance,1000Hz)
Cell dimension:
Height:: 65.0mm
Diameter :18.4mm
Weight: 43g
Cyclelife: 500times
(The rest time after discharge is 5 minutes in this cycle. Perform 3 cycles to check capacity, finishing fully charged. Record capacityof3thcycle. The discharge capacity at the 3th cycle is called the original discharge capacity. The test continues for 500 cycles. Record capacity of 500 cycles )

3-4. Outlook Overview:

4.2 General Package And Remark

_________________________________________________________________________________________

5. Our Story

MKARDA Technology focused on developing the best short distance transportation for human beings, especially for electric scooter area,

which mainly are  electric scooter

5.1 Electric scooter is not a simple work, first you need prepare all metal parts mould, the most important scooter tube parts as below:

5.2 More parts of the electric scooter;

5.3 Assembly Product Line

5.4 OEM&ODM Service are available
