Free Flow Chain Pallet Handing Conveyors
- Payment Type:
- L/C, T/T, D/P, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, China, Shekou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000 sets per month |
| Supply Ability: | 1000 sets per month |
| Payment Type: | L/C,T/T,D/P,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO9001:2008,CE |
| HS Code: | 84283300 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,China,Shekou |

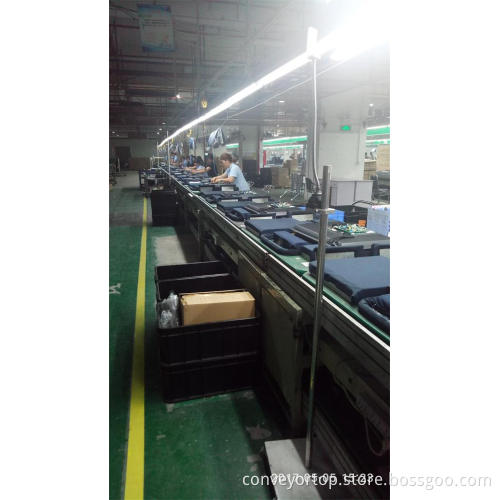

The speed chain conveyor systems are driven by free flow chain, then the pallets will be put on the conveyors. Then speed chain conveyor systems are also called pallet conveyor line, pallet production line and pallet assembly line. The assembling and testing works will be done on the pallets, the semi-products will be moved to next work station for further assembling. The pallets of speed chain conveyor systems can be stopped for every workstation and the times for staying can be controlled, it will improve the production capacity. The speed chain conveyor systems can be designed to ring style, U shape, straight line which can meet your needs.
Specification
Product
Double Speed Chain Conveyor Assembly Line
Assembly Line Width
250~900mm or customized
Assembly Line Height
750~1000mm or customzied
Assembly Line Length
straight line, max 30~40m or customized
Conveyor Speed
2~20m/minute, adjustable by inverter
Chain Type
chain and roller chain, double pitch roller chain(2.5 or 3.0 speed chain)
Pallets
steel pallet, plastic pallet, wooden pallet, etc
Frame Material
aluminum, carbon steel, stainless steel
Eletricity
conductive wheels, socket on pallets
Power
single phrase 220V or three phrase 380V 50HZ
Optional
lighting/air pipe/sockets/A4 working instruction holder/tool hanger/storage shelf...
Application
all kinds of products' assembling and transporting
