LED TV Assembly Line with Aging Line

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean, Land, Air

Port:: Yantian, China, Shekou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000 sets per month
Supply Ability:	1000 sets per month
Payment Type:	L/C,T/T,D/P,Paypal,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	ISO9001:2008,CE
HS Code:	84283300
Transportation:	Ocean,Land,Air
Port:	Yantian,China,Shekou

Product Description

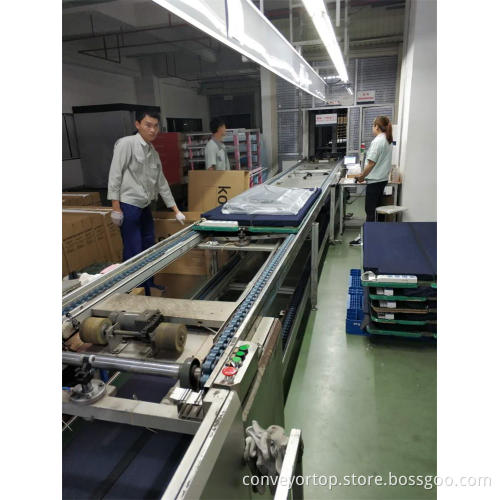

LED TV assembly line with aging line is our hot sale products in speed chain conveyor systems. The aging line for LED TV and testing line for LED TV are also designed with speed chain conveyor systems, which include the conducting rail and wheels. The pallets of the speed chain conveyor systems are made with two or three conductive copper strips at the bottom, and sockets on two corner of the pallest, then the TV can be testing on the speed chain conveyor systems, don't need to move the TV from the assembly line to the testing line. The assembly line for LED TV can be the normal speed chain conveyor systems, don't need the conductive rail on the assembly line, then will save the cost of the speed chain conveyor systems for your assembly line.

Specification

Product	Double Speed Chain Conveyor Assembly Line
Assembly Line Width	250~900mm or customized
Assembly Line Height	750~1000mm or customzied
Assembly Line Length	straight line, max 30~40m or customized
Conveyor Speed	2~20m/minute, adjustable by inverter
Chain Type	chain and roller chain, double pitch roller chain(2.5 or 3.0 speed chain)
Pallets	steel pallet, plastic pallet, wooden pallet, etc
Frame Material	aluminum, carbon steel, stainless steel
Eletricity	conductive wheels, socket on pallets
Power	single phrase 220V or three phrase 380V 50HZ
Optional	lighting/air pipe/sockets/A4 working instruction holder/tool hanger/storage shelf...
Application	all kinds of products' assembling and transporting
