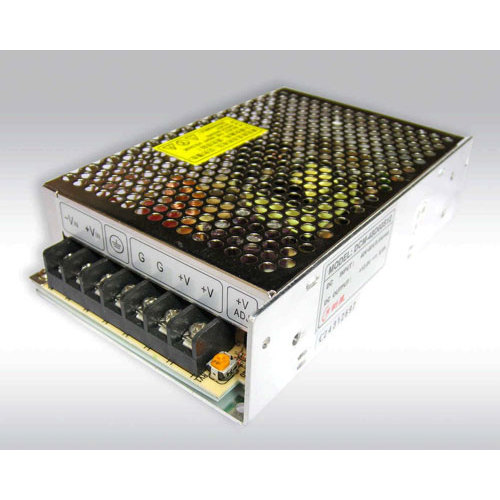

60Watts Single Output DCM-48D60S Series
Your message must be between 20 to 2000 characters
Contact NowFeatures:
High Efficiency, and High reliability
Output protections: SCP/OVP/OPP/OLP
Wide operating ambient temperature (0℃~50℃)
All using 105℃ long life electrolytic capacitors.
100% full load burn-in test
2 years warranty
|
MODEL |
|
DCM-48S60S5 |
DCM-48S60S12 |
DCM-48S60S15 |
DCM-48S60S24 |
||
|
OUTPUT |
DC Output |
5V |
12V |
15V |
24V |
||
|
Rated Current |
12A |
5A |
4.0A |
2.5A |
|||
|
Current Range |
0~12A |
0~5A |
0~4.0A |
0~2.5A |
|||
|
Ripple and Noise Note 2 |
50mV |
120mV |
150mV |
240 mV |
|||
|
Voltage ADJ. Range |
± 5% of rated output voltage |
||||||
|
Voltage Accuracy |
± 3.0% |
± 3.0% |
± 3.0% |
± 3.0% |
|||
|
Line Regulation |
± 0.5% |
± 0.5% |
± 0.5% |
± 0.5% |
|||
|
Load Regulation |
± 2.0% |
± 2.0% |
± 2.0% |
± 2.0% |
|||
|
Temperature Coefficient |
± 0.03%/℃ |
||||||
|
Overshoot and Undershoot |
<5.0% |
||||||
|
INPUT |
Voltage Range |
40VDC~60VDC |
|||||
|
Efficiency ( Typical) |
70% |
78% |
78% |
80% |
|||
|
DC Current (max.) |
3.0 |
3.0A |
2.5A |
2.0A |
|||
|
Leakage Current |
<3.5Ma |
||||||
|
PROTECTION |
Over Current |
105%~180% of rated output current, Constant power |
|||||
|
Over Voltage |
110%~180% of rated output voltage, Constant voltage |
||||||
|
Shorted Circuit |
Long-term mode, auto recovery |
||||||
|
ENVIRONMENT |
Operating amb. Temp. & Hum. |
0℃~50 ; 20%~90%RH No condensing℃ |
|||||
|
Storage Temp. & Hum. |
-2℃~85 ; 10%~95%RH No condensing℃ |
||||||
|
SAFETY &EMC |
Safety Standards |
GB4943; EN60950 |
|||||
|
Withstand Voltage |
Primary-Secondary:0.5KVac; Primary-PG:0.5KVac; Secondary-PG:0.5KVDC |
||||||
|
Isolation Resistance |
100M ohms |
||||||
|
OTHERS |
MTBF (MIL-HDBK-217F) |
More than 100,000Hrs (25 , Full load)℃ |
|||||
|
Dimension (L*W*H) |
160× 98× 38mm |
||||||
|
Connection |
7P/8.025mm barrier terminal block |
||||||
|
Cooling method |
Cooling by free air convection |
||||||
|
NOTE |
1. All parameters NOT specially mentioned are measured at rated input, rated load and 25 of ambient temperature.℃2. Measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. |
||||||
